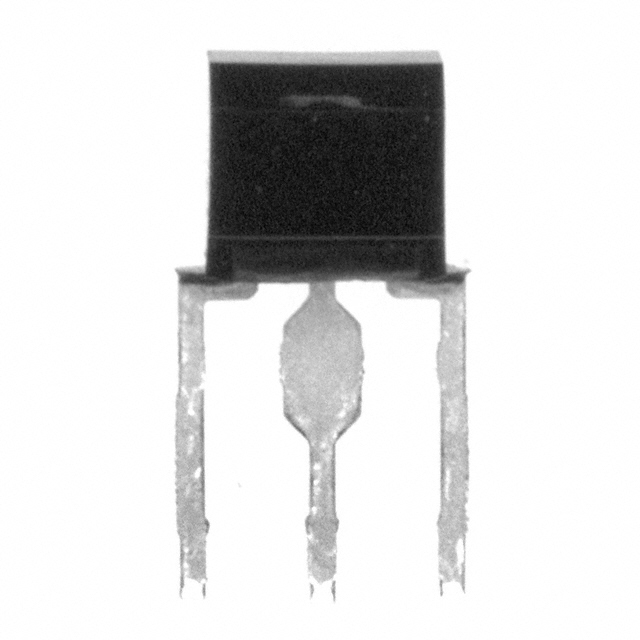

SFH 3162 F
Obsoleteams-OSRAM USA INC.
SENSOR PHOTO 920NM SIDE VIEW RAD
SFH 3162 F
Obsoleteams-OSRAM USA INC.
SENSOR PHOTO 920NM SIDE VIEW RAD
Description
General part information
SFH 3162 F
Phototransistors 920nm Side View Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 3162 F |
|---|---|
| Current - Collector (Ic) (Max) | 0.01 mA |
| Current - Dark (Id) (Max) | 100 nA |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Side View |
| Package / Case | Radial |
| Power - Max | 100 mW |
| Viewing Angle | 150 ° |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Wavelength | 920 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
