EN3C12F26SX

Active

Switchcraft Inc.

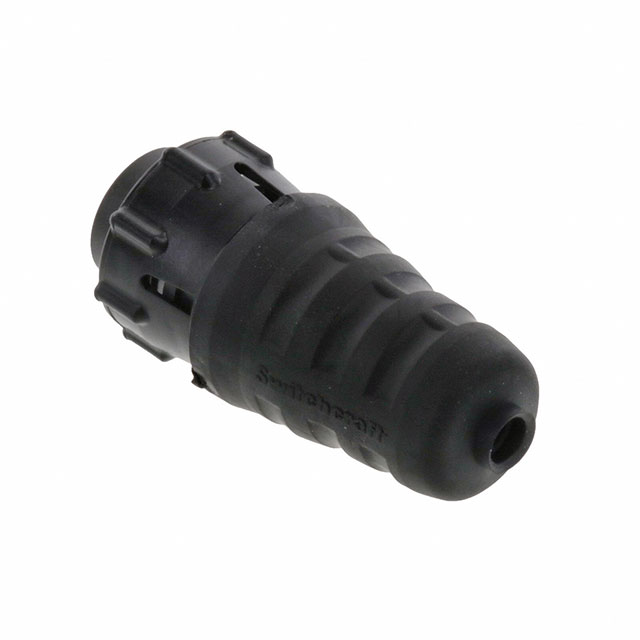

CONN PLUG FMALE 12P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE 12P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C12F26SX	EN3C12 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Plug, Male Pins, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	12	12
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	250 VAC	250 VAC

CONN PLUG MALE 12P GOLD SLDR CUP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Fastening Type	Applications	Connector Type	Backshell Material, Plating	Material Flammability Rating	Contact Finish - Mating	Voltage Rating	Shielding	Primary Material	Number of Positions	Insert Material	Contact Material	Mounting Type	Color	Cable Opening [diameter]	Cable Opening [diameter]	Orientation	Current Rating (Amps)	Ingress Protection
Switchcraft Inc. EN3C12M26X	65 °C	-40 °C	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Male Pins, Plug	Thermoplastic	UL94 V-0	Gold	250 VAC	Unshielded	Plastic	12	Elastomer	Copper Alloy	Free Hanging (In-Line)	Black	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Keyed	3 A	IP66/IP68
Switchcraft Inc. EN3C12M26SX	65 °C	-40 °C	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Male Pins, Plug	Thermoplastic	UL94 V-0	Gold	250 VAC	Unshielded	Plastic	12	Elastomer	Copper Alloy	Free Hanging (In-Line)	Black	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Keyed	3 A	IP66/IP68
Switchcraft Inc. EN3C12F26SX	65 °C	-40 °C	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	General Purpose, Instrumentation, Marine, Medical	Female Sockets, Plug	Thermoplastic	UL94 V-0	Gold	250 VAC	Unshielded	Plastic	12	Elastomer	Copper Alloy	Free Hanging (In-Line)	Black	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Keyed	3 A	IP66/IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Female Sockets Solder Cup
