1217332-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217332-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217332-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.635 in |
| Length - Overall [x] | 16.13 mm |
| Mounting Type | Through Hole |
| Tab Length | 0.395 in |
| Tab Length | 10.03 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 10 | $ 0.17 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
1217332 Series
CONN QC TAB 0.187 SOLDER
| Part | Tab Thickness | Tab Thickness | Mounting Type | Tab Width | Tab Width | Contact Material | Insulation | Terminal Type | Contact Finish | Termination | Gender | Tab Length | Tab Length | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217332-1 | 0.032 in | 0.81 mm | Through Hole | 4.75 mm | 0.187 in | Brass | Non-Insulated | Standard | Tin | Solder | Male | 0.395 in | 10.03 mm | 0.635 in | 16.13 mm |
Description
General part information
1217332 Series

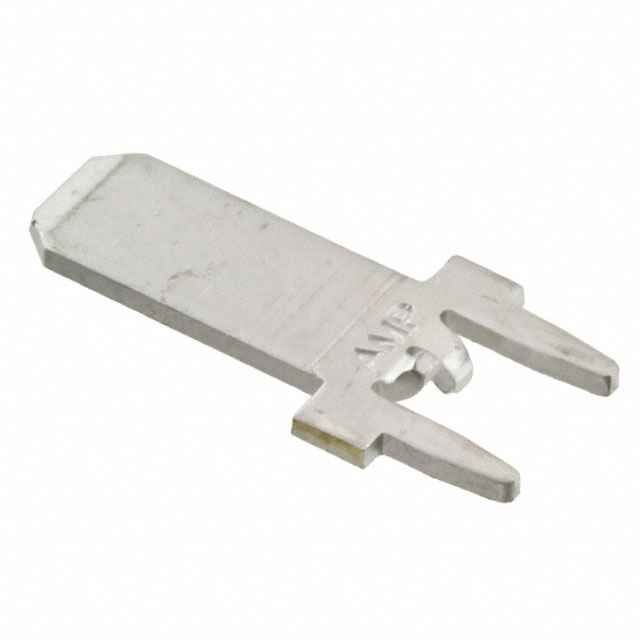

0.187" (4.75mm) Quick Connect Male Solder Connector Non-Insulated
