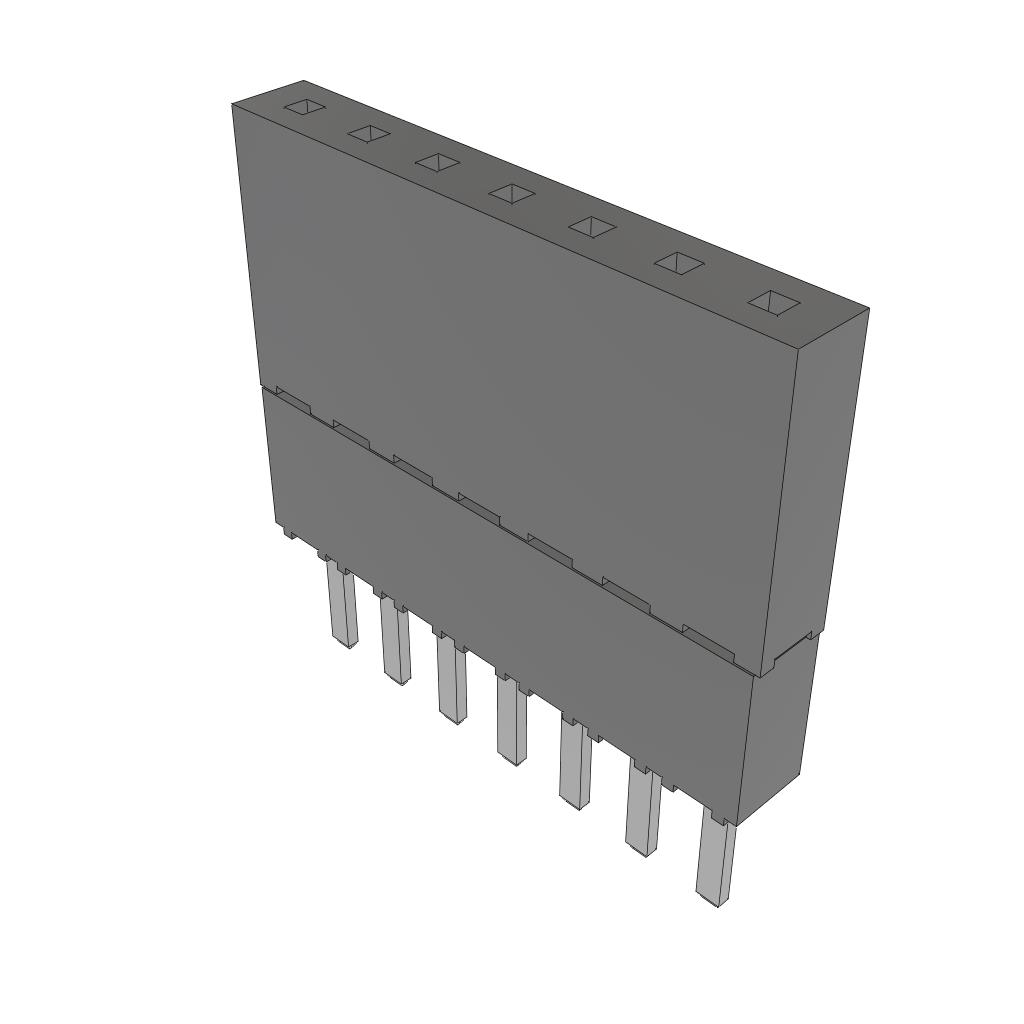

ESW-107-48-L-S

Active

Samtec Inc.

CONN SOCKET 7POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESW Series Other Related Documents 01 Datasheet +1

ESW-107-48-L-S

Active

Samtec Inc.

CONN SOCKET 7POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsESW Series Other Related Documents 01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESW-107-48-L-S

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	4.83 mm
Contact Length - Post	0.19 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	13.6 mm
Insulation Height	0.535 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	550 VAC

ESW-111 Series

PC / 104 Connectors .100" Elevated Socket Strip

...

Part	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Termination	Number of Positions Loaded	Contact Material	Insulation Height	Insulation Height	Contact Type	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Voltage Rating	Number of Positions	Insulation Color	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions
Samtec Inc. ESW-117-37-G-D-LL	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	0.51 µm	20 µin	Gold	2	3 µin	0.076 µm	Elevated Socket	Kinked Pin Solder	All	Phosphor Bronze	0.435 in	11.05 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC	34	Black	5.2 A	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square
Samtec Inc. ESW-132-34-G-D	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	0.51 µm	20 µin	Gold	2	3 µin	0.076 µm	Elevated Socket	Solder	All	Phosphor Bronze	0.635 in	16.13 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC	64	Black	5.2 A			Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square
Samtec Inc. ESW-107-12-F-S	0.1 in	2.54 mm			Through Hole	0.076 µm	3 µin	Tin	1			Elevated Socket	Solder	All	Phosphor Bronze	0.435 in	11.05 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC	7	Black	5.2 A	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square
Samtec Inc. ESW-107-48-L-S	0.1 in	2.54 mm			Through Hole	0.25 çm	10 çin	Tin	1			Elevated Socket	Solder	All	Phosphor Bronze	0.535 in	13.6 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC	7	Black	5.2 A	0.19 in	4.83 mm	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square
Samtec Inc. ESW-136-13-T-D	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole			Tin	2			Elevated Socket	Solder	All	Phosphor Bronze	0.435 in	11.05 mm	Forked		Push-Pull	UL94 V-0	550 VAC	72	Black	5.2 A			Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Square	0.29 "	7.37 mm
Samtec Inc. ESW-116-12-S-S	0.1 in	2.54 mm			Through Hole	0.76 Ám	30 Áin	Tin	1			Elevated Socket	Solder	All	Phosphor Bronze	0.435 in	11.05 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC		Black	5.2 A	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square			16
Samtec Inc. ESW-107-33-G-D	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	0.51 µm	20 µin	Gold	2	3 µin	0.076 µm	Elevated Socket	Solder	All	Phosphor Bronze	0.635 in	16.13 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC	14	Black	5.2 A	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square
Samtec Inc. ESW-107-23-L-S	0.1 in	2.54 mm			Through Hole	0.25 çm	10 çin	Tin	1			Elevated Socket	Solder	All	Phosphor Bronze	0.535 in	13.6 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC	7	Black	5.2 A	0.19 in	4.83 mm	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square
Samtec Inc. ESW-106-13-G-D	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	0.51 µm	20 µin	Gold	2	3 µin	0.076 µm	Elevated Socket	Solder	All	Phosphor Bronze	0.435 in	11.05 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC	12	Black	5.2 A			Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square	0.29 "	7.37 mm
Samtec Inc. ESW-106-33-G-D-LL	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	0.51 µm	20 µin	Gold	2	3 µin	0.076 µm	Elevated Socket	Kinked Pin Solder	All	Phosphor Bronze	0.635 in	16.13 mm	Forked	Gold	Push-Pull	UL94 V-0	550 VAC	12	Black	5.2 A	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.23
