5052744010

Obsolete

Molex

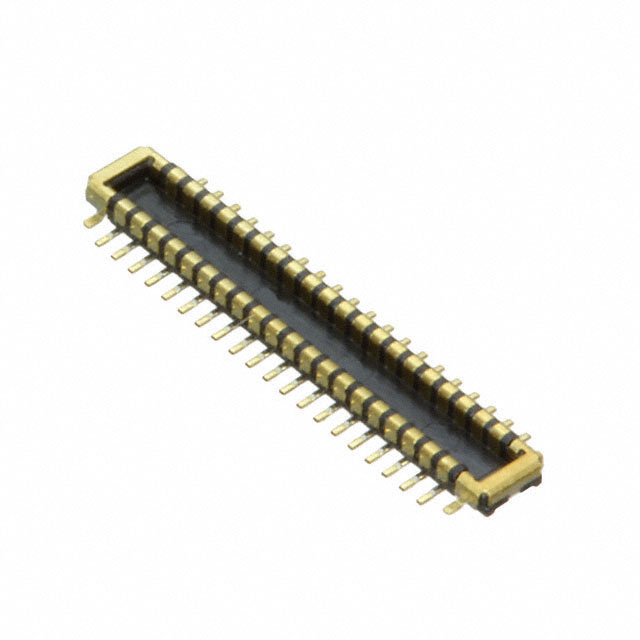

CONN PLUG 40POS SMD GOLD

Find alt

Alpha

5052744010

Obsolete

Molex

CONN PLUG 40POS SMD GOLD

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

505274 Series

SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 0.80 or 0.90mm Mated Height, 2.00mm Mated Width, 20 Circuits, Armor Nail, 0.15mm Fitting Nail Width

Technical Specifications

Parameters and characteristics for this part

Specification	5052744010

Connector Type	Plug, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Mated Stacking Height	0.8 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch	0.014 in

505274 Series

SlimStack Board-to-Board Plug, 0.35mm Pitch, SSB RP Series, 0.80 or 0.90mm Mated Height, 2.00mm Mated Width, 20 Circuits, Armor Nail, 0.15mm Fitting Nail Width

Part	Number of Positions	Number of Rows	Connector Type	Contact Finish	Mated Stacking Height	Pitch	Features	Height Above Board	Mounting Type
Molex 5052740642	6	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount
Molex 5052744042	40	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount
Molex 5052742442	24 pos	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount
Molex 5052745412	54	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount
Molex 5052743442	34	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount
Molex 5052743010	30	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Solder Retention	0.026 in	Surface Mount
Molex 5052743412	34	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount
Molex 5052745442	54	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount
Molex 5052741012	10	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount
Molex 5052740640	6	2	Outer Shroud Contacts Plug	Gold	0.8 mm	0.014 in	Pick and Place Solder Retention	0.026 in	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
