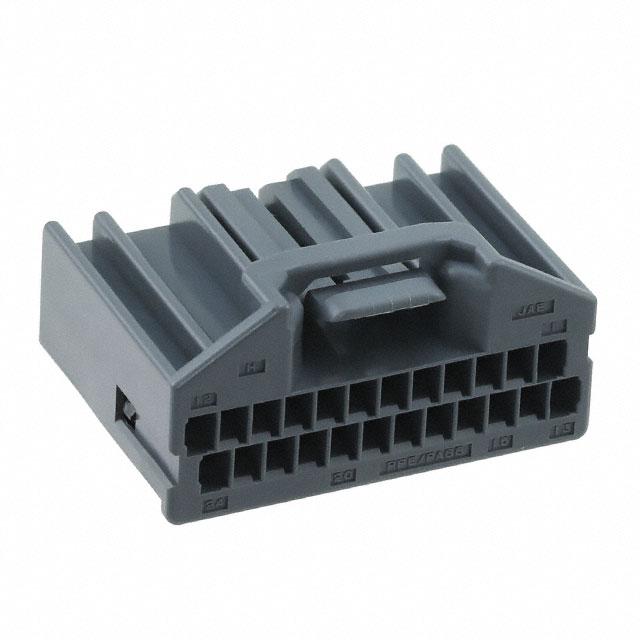

Specification	MX34024SF1

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	24 pos
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.087 in
Row Spacing	0.118 in

MX340 Series

Part	Fastening Type	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material	Number of Rows	Color	Number of Positions	Connector Type	Mounting Type	Pitch	Contact Termination	Note	Row Spacing
JAE Electronics MX34028SF1	Latch Holder	Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	2	Black	28	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included
JAE Electronics MX34008SF4	Latch Holder	Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	2	Blue	8	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included	0.118 in
JAE Electronics MX34036SF1		Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	2	Gray	36	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included	0.118 in
JAE Electronics MX34036SF4	Latch Holder	Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	2	Black	36	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included	0.118 in
JAE Electronics MX34012SF4	Latch Holder	Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	2	Blue	12	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included	0.118 in
JAE Electronics MX34005SF1		Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	1	Gray	5	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included
JAE Electronics MX34032SF1		Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	2	Gray	32	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included	0.118 in
JAE Electronics MX34017SFA		Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)		Gray	17	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included
JAE Electronics MX34016SF1		Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	2	Gray	16	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included	0.118 in
JAE Electronics MX34032SF4	Latch Holder	Female Socket	-40 °C	85 °C	Nylon 6/6 Polyamide (PA66)	2	Blue	32	Receptacle	Free Hanging (In-Line)	0.087 in	Crimp	Contacts Not Included	0.118 in
