Description
General part information

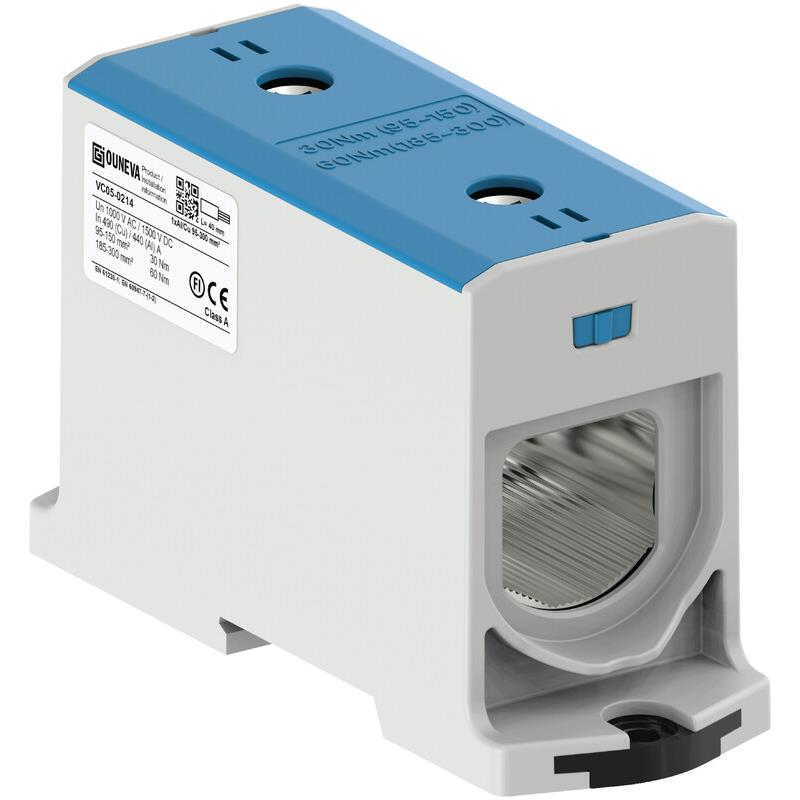

VC05-0214
1 Pole Power Distribution Block 490 A 1500 V
Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0214 |
|---|---|
| Current Rating | 490 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Cross-sectional Area | 350 MCM |
| Line Side Wire/Stud Designation | AWG, AL, 3/0, CU |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size (Area) | 350 MCM |
| Load Side Wire/Stud Size (Designation) | 3/0 AWG CU/AL |
| Number of Poles | 1 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 VAC |
