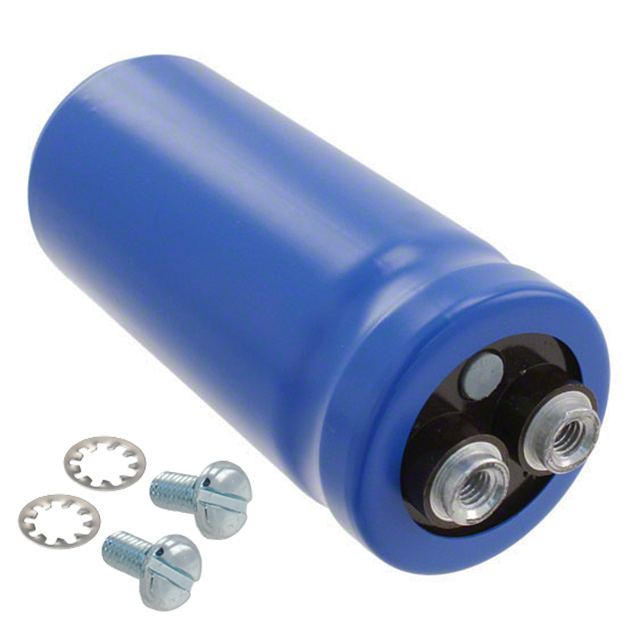

Specification	CGS241T450R2C

Applications	General Purpose
Capacitance	240 µF
ESR (Equivalent Series Resistance)	416 mOhm
Height - Seated (Max)	2.125 in
Lifetime	2000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	1.3 A, 1.95 A
Size / Dimension Diameter	1.375 in
Tolerance (Negative)	10 %
Tolerance (Positive)	50 %
Voltage - Rated	450 V
