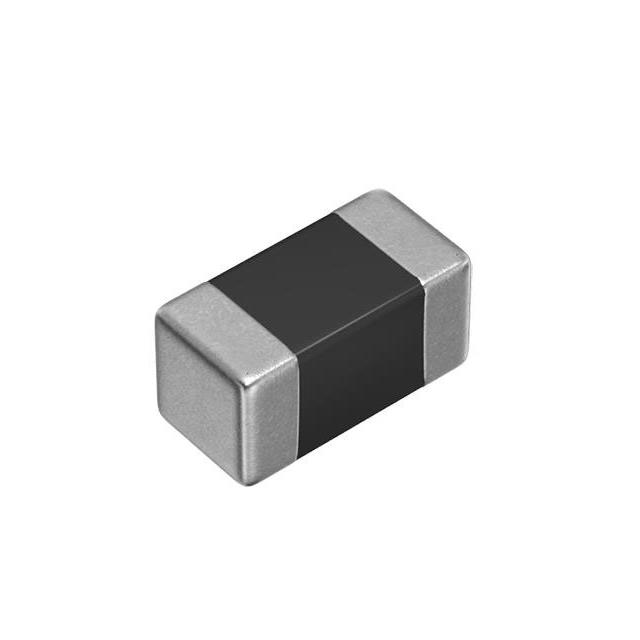

MMZ0603A471ET000
ActiveTDK Corporation
FERRITE BEAD, 470 OHM, 0.185A, 0603 ROHS COMPLIANT: YES
MMZ0603A471ET000
ActiveTDK Corporation
FERRITE BEAD, 470 OHM, 0.185A, 0603 ROHS COMPLIANT: YES
Description
General part information
MMZ0603A471ET000
470 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0201 (0603 Metric) 185mA 1.3Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | MMZ0603A471ET000 |
|---|---|
| Current Rating (Max) | 185 mA |
| DC Resistance (DCR) (Max) | 1.3 Ohm |
| Filter Type | Signal Line |
| Height (Max) | 0.013 in |
| Impedance | 470 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
