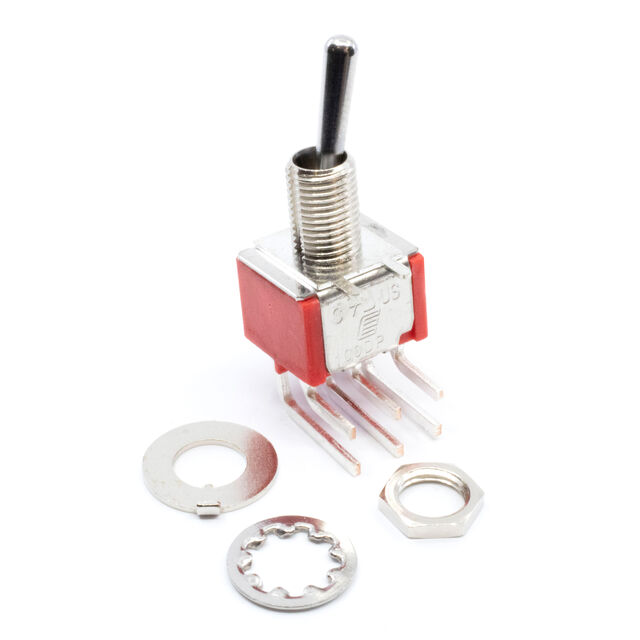

100DP3T1B1M6QEH - 100DP3T1B1M6QEH

100DP3T1B1M6QEH

Active
E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
100DP3T1B1M6QEH - 100DP3T1B1M6QEH

100DP3T1B1M6QEH

Active
E-Switch

SWITCH TOGGLE DPDT 5A 120V

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification100DP3T1B1M6QEH100DP3 Series
Actuator Length [x]10.41 mm5.08 - 21.34 mm
Actuator MaterialBrass, Chrome PlatedBrass, Chrome Plated
Actuator TypeStandard RoundStandard Round
Bushing Thread1/4-40Unthreaded, 15/32-32, 1/4-40
CircuitDPDTDPDT
Current Rating (Amps)5 A0.4 - 5 A
Electrical Life40000 Cycles40000 Cycles
FeaturesEpoxy Sealed TerminalsEpoxy Sealed Terminals
IlluminationNon-IlluminatedNon-Illuminated
Mounting TypeRight Angle, Panel MountThrough Hole, Vertical, Right Angle, Panel Mount
Operating Temperature [Max]85 °C85 °C
Operating Temperature [Min]-30 ░C-30 ░C
Panel Cutout Dimensions [diameter]0.25 in0.25 - 11.91 mm
Switch FunctionOn-Off-OnOn-Off-On
Termination StylePC PinPC Pin, Solder Lug, Wire Wrap
Voltage Rating - AC120 V20 - 120 V
Voltage Rating - DC28 V20 - 28 V

100DP3 Series

SWITCH TOGGLE DPDT 5A 120V

PartVoltage Rating - ACFeaturesBushing ThreadActuator TypeIlluminationCurrent Rating (Amps)Termination StyleCircuitVoltage Rating - DCOperating Temperature [Min]Operating Temperature [Max]Switch FunctionActuator MaterialMounting TypeElectrical LifeActuator Length [x]Panel Cutout Dimensions [diameter]
E-Switch
100DP3T2B2M7QE
120 V
Epoxy Sealed Terminals
Unthreaded
Standard Round
Non-Illuminated
5 A
PC Pin
DPDT
28 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
Right Angle, Through Hole, Vertical
40000 Cycles
5.08 mm
E-Switch
100DP3T7B13M2QE
120 V
Epoxy Sealed Terminals
15/32-32
Standard Round
Non-Illuminated
5 A
PC Pin
DPDT
28 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
40000 Cycles
13 mm
11.91 mm
E-Switch
100DP3T1B1M2RE
20 V
Epoxy Sealed Terminals
1/4-40
Standard Round
Non-Illuminated
0.4 VA
PC Pin
DPDT
20 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
40000 Cycles
10.41 mm
0.25 in
E-Switch
100DP3T8B13M1RE
20 V
Epoxy Sealed Terminals
15/32-32
Standard Round
Non-Illuminated
0.4 VA
Solder Lug
DPDT
20 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
40000 Cycles
17.98 mm
11.91 mm
E-Switch
100DP3T1B1M6QEH
120 V
Epoxy Sealed Terminals
1/4-40
Standard Round
Non-Illuminated
5 A
PC Pin
DPDT
28 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
Panel Mount, Right Angle
40000 Cycles
10.41 mm
0.25 in
E-Switch
100DP3T1B9M2QE
120 V
Epoxy Sealed Terminals
1/4-40
Standard Round
Non-Illuminated
5 A
PC Pin
DPDT
28 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
40000 Cycles
10.41 mm
0.25 in
E-Switch
100DP3T8B13M1QEH
120 V
Epoxy Sealed Terminals
15/32-32
Standard Round
Non-Illuminated
5 A
Solder Lug
DPDT
28 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
40000 Cycles
18 mm
11.91 mm
E-Switch
100DP3T5B4M2RE
20 V
Epoxy Sealed Terminals
Unthreaded
Standard Round
Non-Illuminated
0.4 VA
PC Pin
DPDT
20 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
Through Hole
40000 Cycles
21.34 mm
E-Switch
100DP3T8B13M2QEH
120 V
Epoxy Sealed Terminals
15/32-32
Standard Round
Non-Illuminated
5 A
PC Pin
DPDT
28 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
40000 Cycles
18 mm
11.91 mm
E-Switch
100DP3T1B1M2REH
20 V
Epoxy Sealed Terminals
1/4-40
Standard Round
Non-Illuminated
0.4 VA
PC Pin
DPDT
20 V
-30 ░C
85 °C
On-Off-On
Brass, Chrome Plated
40000 Cycles
10.41 mm
0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 960$ 3.36

Description

General part information

100DP3 Series

Toggle Switch DPDT Panel Mount, Right Angle
