Description
General part information
ZMM22BR13

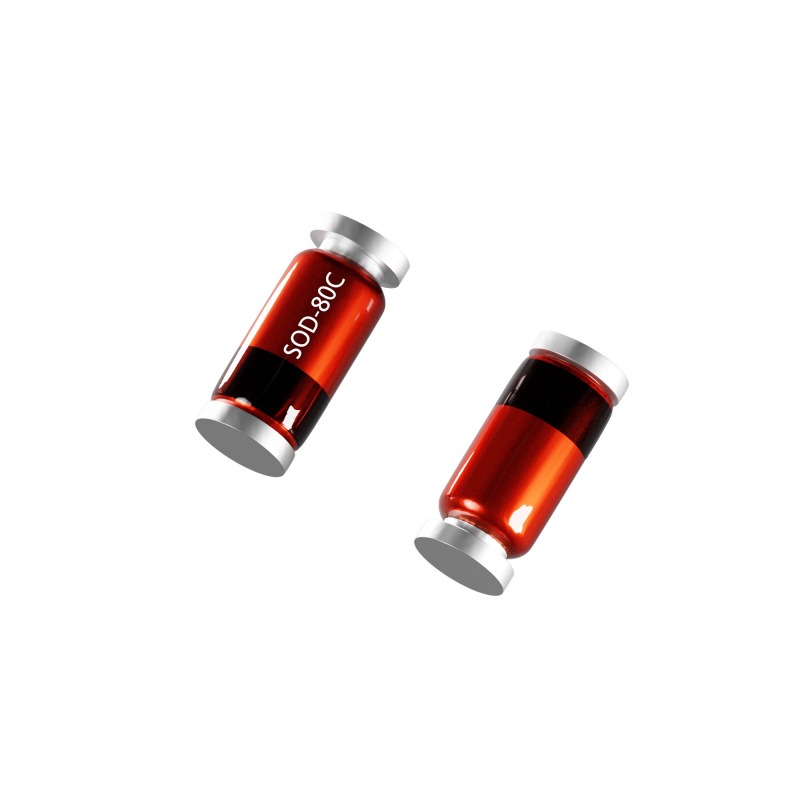

Zener Diode 22 V 500 mW ±2% Surface Mount SOD-80C
Technical Specifications
Parameters and characteristics for this part
| Specification | ZMM22BR13 |
|---|---|
| Current - Reverse Leakage | 100 nA |
| Impedance (Max) (Zzt) | 55 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | MINI-MELF, SOD-80, DO-213AC |
| Package Name | SOD-80C |
| Power - Max | 0.5 W |
| Tolerance | 2 % |
| Voltage - Zener (Nom) (Vz) | 22 V |
