Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TS985IJT | TS985 Series |
|---|---|---|
| - | - | |
| CMRR, PSRR (Typ) | 43 dB | 43 dB |
| Current - Input Bias (Max) [Max] | 0.04 µA | 0.04 µA |
| Current - Quiescent (Max) [Max] | 19 µA | 19 µA |
| Hysteresis | 3 mV | 3 mV |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Elements | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Push-Pull | Push-Pull |
| Package / Case | CSPBGA, 6-UFBGA | CSPBGA, 6-UFBGA |
| Propagation Delay (Max) [Max] | 300 ns | 300 ns |
| Supplier Device Package | 6-CSP | 6-CSP |
| Supplier Device Package [x] | 1.2 | 1.2 |
| Supplier Device Package [y] | 0.8 | 0.8 |
| Type | General Purpose | General Purpose |
| Voltage - Input Offset (Max) [Max] | 8 mV | 8 mV |
| Voltage - Supply, Single/Dual (±) [Max] | 5 V | 5 V |
| Voltage - Supply, Single/Dual (±) [Min] | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.89 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.69 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.48 | |||
| 2500 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.05 | ||
| 10 | $ 0.94 | |||
| 25 | $ 0.89 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.69 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.48 | |||
| 2500 | $ 0.45 | |||
| Tape & Reel (TR) | 5000 | $ 0.42 | ||
| 10000 | $ 0.41 | |||
| 25000 | $ 0.40 | |||
TS985 Series
Micropower low-voltage rail-to-rail comparator
| Part | Hysteresis | Current - Quiescent (Max) [Max] | Current - Input Bias (Max) [Max] | CMRR, PSRR (Typ) | Type | Mounting Type | Voltage - Input Offset (Max) [Max] | Propagation Delay (Max) [Max] | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Number of Elements | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Output Type | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TS985IJT | 3 mV | 19 µA | 0.04 µA | 43 dB | General Purpose | Surface Mount | 8 mV | 300 ns | 1.2 | 6-CSP | 0.8 | 1 | 85 °C | -40 °C | 6-UFBGA, CSPBGA | Push-Pull | 5 V | 1.8 V |
STMicroelectronics TS985IJT |
Description
General part information
TS985 Series
The TS985 is a single micropower and low voltage comparator. It can operate with a supply voltage ranging from 1.8 V to 5 V with a typical current consumption as low as 14 μA while achieving a 300 ns propagation delay. In addition, rail-to-rail inputs make it a perfect choice for low voltage applications.

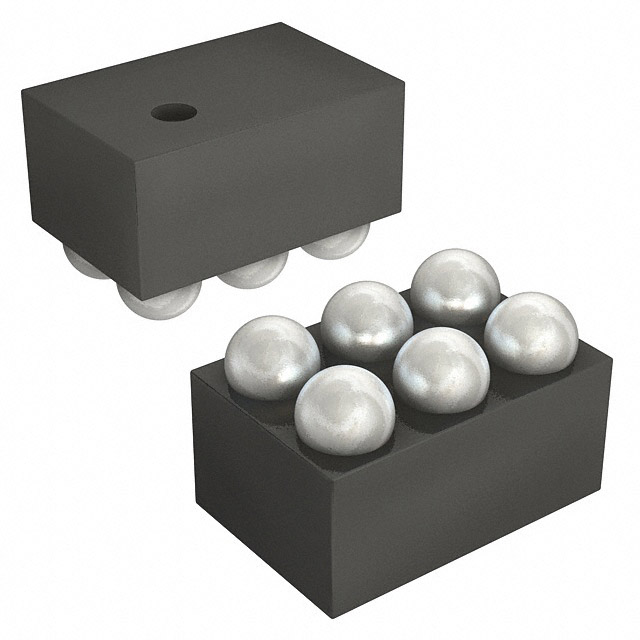

The 6-bump chip scale package (CSP) is a real advantage for overcoming space constraints.
TS985 is specified for temperature between -40 °C to 85 °C, making it ideal for a wide range of applications.
