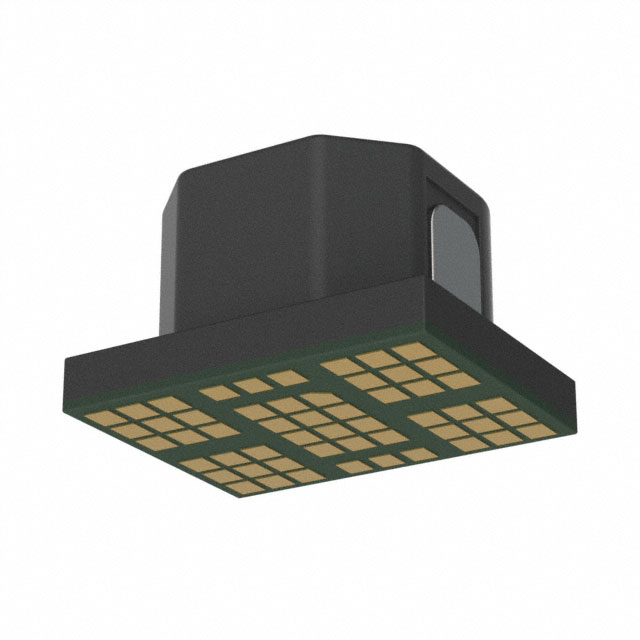

MYSGK1R830ERSR

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.7-1.8V 54W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.7-1.8V 54W

Technical Specifications

Parameters and characteristics commom to parts in this series

EVAL BOARD FOR MYSGK1R830FRSR

Part	Current - Output	Main Purpose	Board Type	Utilized IC / Part	Outputs and Type	Outputs and Type	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Power - Output	Supplied Contents	Voltage - Output [Max]	Voltage - Output [Min]	Features	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Power (Watts)	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Mounting Type	Current - Output (Max) [Max]	Type
Murata Power Solutions Inc. MYSGK1R830FRSR-EVM	30 A	DC/DC, Step Down	Fully Populated	MYSGK1R830FRSR	Non-Isolated	1	425 kHz	5.5 V	4.5 V	54 W	Board(s)	1.8 V	0.7 V
Murata Power Solutions Inc. MYSGK1R830ERSR														OCP, Remote On/Off	14 V	54-BLGA Module	0.7 V	1.8 V	88.3 %	54 W	Active High, Enable	85 °C	-40 °C	7.5 V	1	11 mm	0.55 in	8.3 mm	14 mm	0.33 in	0.43 in	ITE (Commercial)	Surface Mount	30 A	Non-Isolated PoL Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 1.8V 30A 7.5V - 14V Input
