Description
General part information

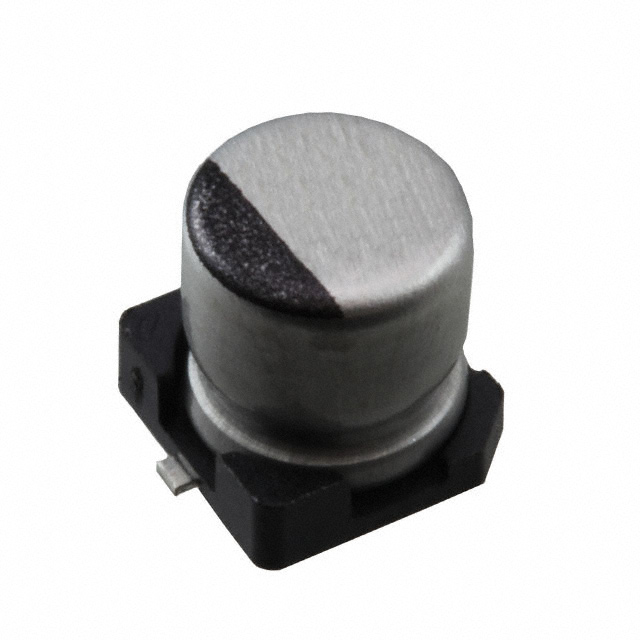

10SZV33M5X5.5
33 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 10SZV33M5X5.5 |
|---|---|
| Applications | General Purpose |
| Capacitance | 33 µF |
| Height - Seated (Max) | 0.217 in |
| Impedance | 1.8 Ohms |
| Lifetime | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 95 mA, 52.25 mA |
| Size / Dimension Diameter | 0.197 in |
| Surface Mount Land Length | 0.209 in |
| Surface Mount Land Width | 0.209 in |
| Tolerance | 20 % |
| Voltage - Rated | 10 V |
