LV5807MX-TLM-H
ObsoleteSanyo
IC REG BUCK ADJ 3A 8MFP
Deep-Dive with AI
Search across all available documentation for this part.
LV5807MX-TLM-H
ObsoleteSanyo
IC REG BUCK ADJ 3A 8MFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LV5807MX-TLM-H |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 385 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Supplier Device Package | 8-MFP |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 8 V |
| Voltage - Output (Max) [Max] | 14.4 V |
| Voltage - Output (Min/Fixed) [Min] | 0.79 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 322 | $ 0.93 | |
Description
General part information
LV5807 Series

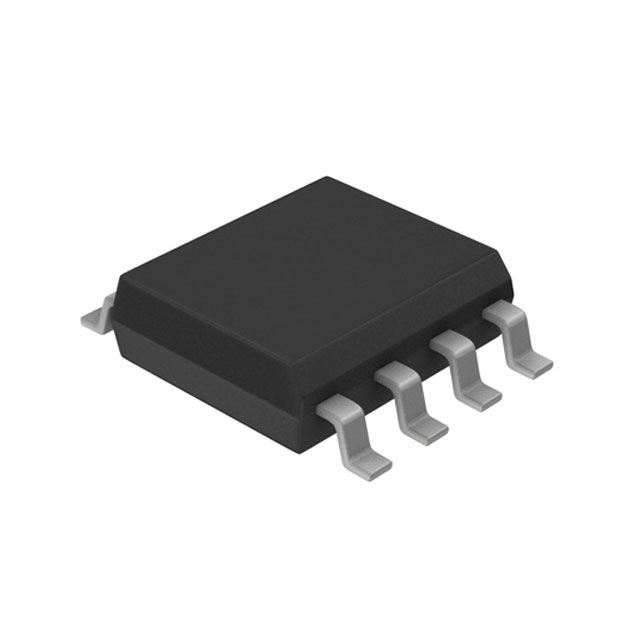

Buck Switching Regulator IC Positive Adjustable 0.79V 1 Output 3A 8-SOIC (0.173", 4.40mm Width) Exposed Pad
Documents
Technical documentation and resources
No documents available
