Description
General part information

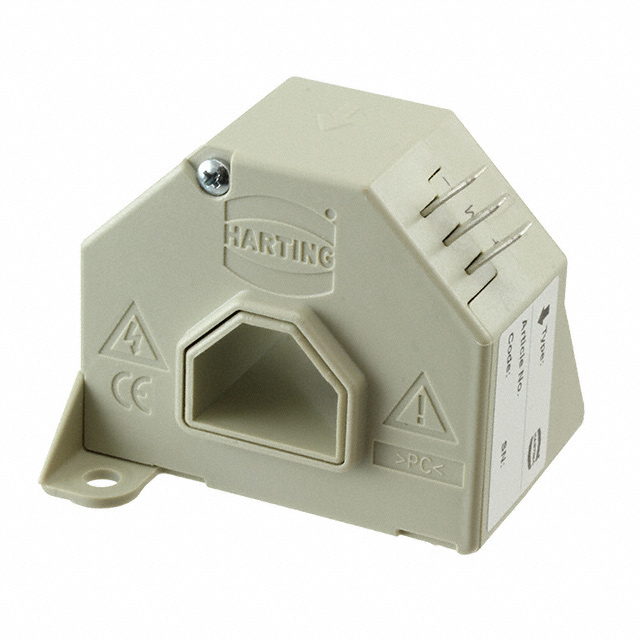

20310200101
Current Sensor 200A 1 Channel Hall Effect, Closed Loop Bidirectional Module, Single Pass Through
Technical Specifications
Parameters and characteristics for this part
| Specification | 20310200101 |
|---|---|
| Accuracy | 0.8 % |
| Current - Sensing | 200 A |
| Current - Supply (Max) | 20 mA |
| For Measuring | AC, DC |
| Frequency | 100 kHz |
| Linearity Tolerance | 0.1 % |
| Mounting Type | Chassis Mount |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Response Time | 1 µs |
| Sensor Type | Hall Effect, Closed Loop |
| Voltage - Supply | 15 VDC |
