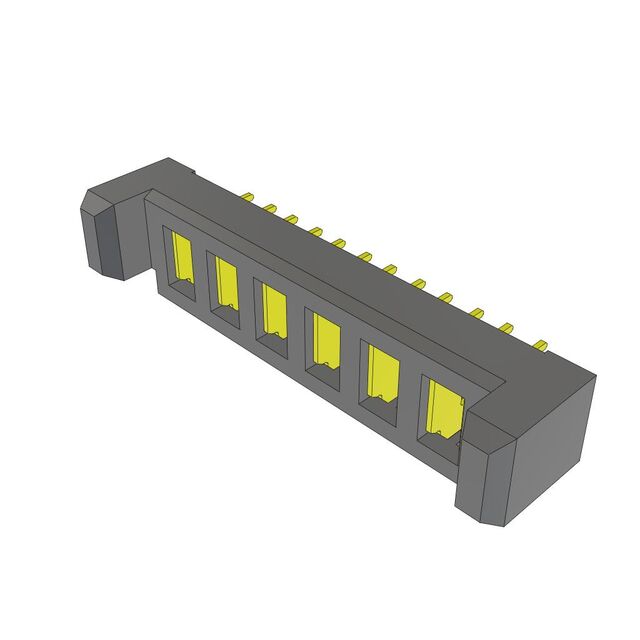

UPS-06-04.0-01-L-V-LC
ActiveSamtec Inc.
CONN RCPT 6POS 3.81MM PCB SLDR
UPS-06-04.0-01-L-V-LC
ActiveSamtec Inc.
CONN RCPT 6POS 3.81MM PCB SLDR
Description
General part information
UPS-06-04.0-01-L-V-LC
6 Position Receptacle, Female Blade Sockets Connector Solder 0.150" (3.81mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | UPS-06-04.0-01-L-V-LC |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Beryllium Copper |
| Current Rating | 23 A |
| Features | Board Lock |
| Material - Insulation | LCP, Liquid Crystal Polymer |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.15 in |
| Termination | Solder |
| Voltage Rating | 438 V |
