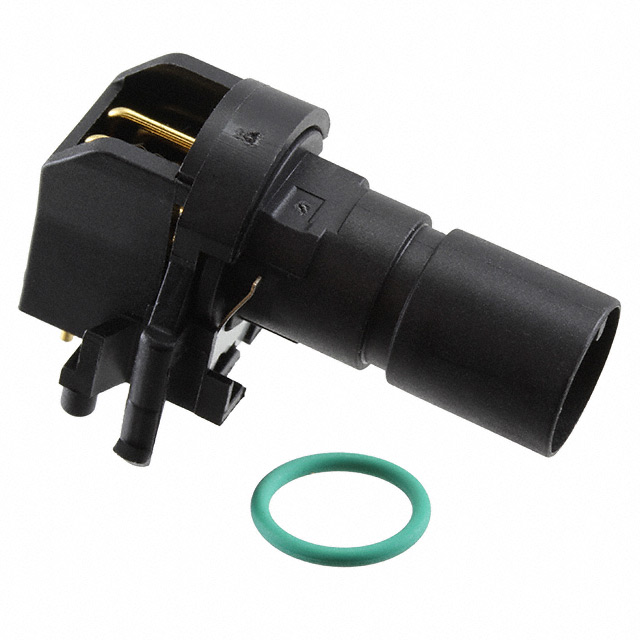

Specification	1424198

Connector Type	Insert, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	1.5 A
Features	Board Guide, Insert Only, Board Lock, Requires Shell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PA6T, Nylon 6/T, Polyamide
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Shell Size - Insert	M12-12
Termination	Solder
Voltage Rating	30 V
