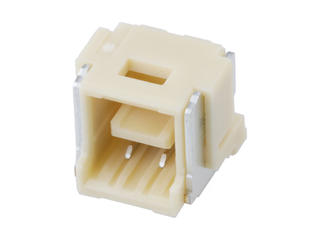

5024430270 - 2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, 2 Circuits

5024430270

Active
Molex

2.00MM PITCH CLIK-MATE WIRE-TO-BOARD PCB RECEPTACLE, SINGLE ROW, VERTICAL, 2 CIRCUITS

Find alt
5024430270 - 2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, 2 Circuits

5024430270

Active
Molex

2.00MM PITCH CLIK-MATE WIRE-TO-BOARD PCB RECEPTACLE, SINGLE ROW, VERTICAL, 2 CIRCUITS

Find alt

Description

General part information

502443 Series

2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, 3 Circuits

Technical Specifications

Parameters and characteristics for this part

Specification5024430270
Connector TypeReceptacle
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating39.4 µin
Contact TypeForked
Fastening TypeLatch Holder
FeaturesSolder Retention
Insulation ColorNatural
Insulation Height0.293 in
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.079 in
StyleCable/Wire, Board
TerminationSolder
