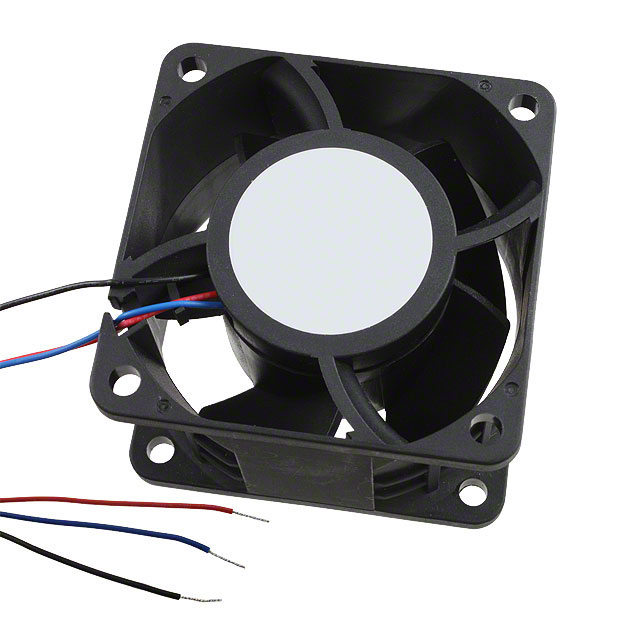

AFB0612EHE-AF00 - AFB0612EHE-AF00

AFB0612EHE-AF00

Obsolete
Delta Electronics

FAN AXIAL 60X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans VDE CertFans, Electric - Component UL Cert+2

Technical Specifications

Parameters and characteristics for this part

SpecificationAFB0612EHE-AF00
Air Flow1.73 mł/min
Air Flow61.7 CFM
Approval AgencyUL, CE, VDE, CSA
Bearing TypeBall
Current Rating (Amps)1.12 A
Fan TypeTubeaxial
FeaturesSpeed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.70000 Hrs
Material - BladePlastic
Material - FramePlastic
Noise60 dB(A)
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-10 °C
Operating Temperature [Min]-10 °C
Power (Watts)13.44 W
RPM11000 RPM
Size / Dimension [x]60 mm
Size / Dimension [y]60 mm
Static Pressure1.496 in H2O
Static Pressure372.6 Pa
Termination3 Wire Leads
Voltage - Rated12 VDC
Voltage Range [Max]13.8 VDC
Voltage Range [Min]7 V
Weight117.03 g
Weight0.258 lb
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

AFB0612EHE-AF00

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 61.7 CFM (1.73m³/min) 3 Wire Leads
