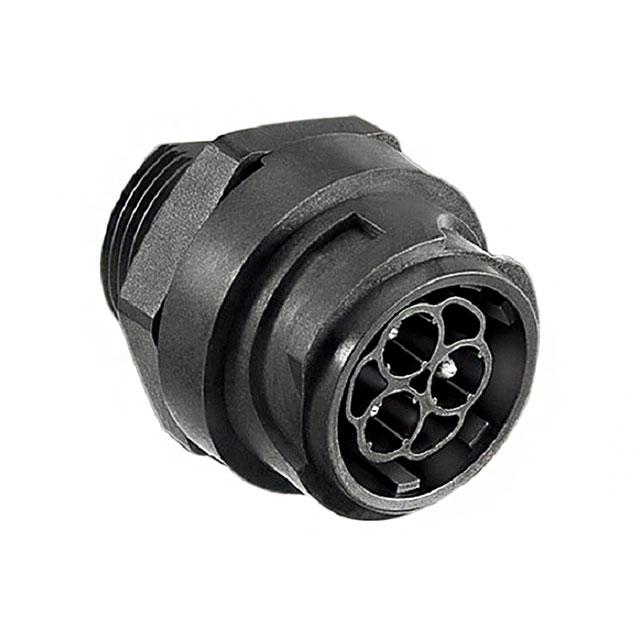

C016 10P002 800 1

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 3POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG MALE 3POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C016 10P002 800 1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	UV Resistant
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions [custom]	2
Number of Positions [custom]	3
Number of Positions [custom]	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Male Pins

CONN RCPT HSNG MALE 3POS PNL MT

Part	Features	Contact Type	Mounting Feature	Shell Size - Insert	Type	Connector Type	Note	Contact Shape	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Ingress Protection	Orientation	Housing Color	Contact Size	Fastening Type
Amphenol Tuchel Industrial C016 10P002 800 1	UV Resistant	Crimp	Bulkhead - Rear Side Nut	1	For Male Pins	Receptacle Housing	Contacts Not Included	Circular	2	3	1	Polyamide (PA66), Nylon 6/6	Unshielded	125 °C	-40 °C	UL94 V-0	IP67 - Dust Tight, Waterproof	N	Black	2.5 mm	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (2 + PE) Position Circular Connector Receptacle Housing Panel Mount UV Resistant
