050R26-76B

Active

Parlex USA LLC

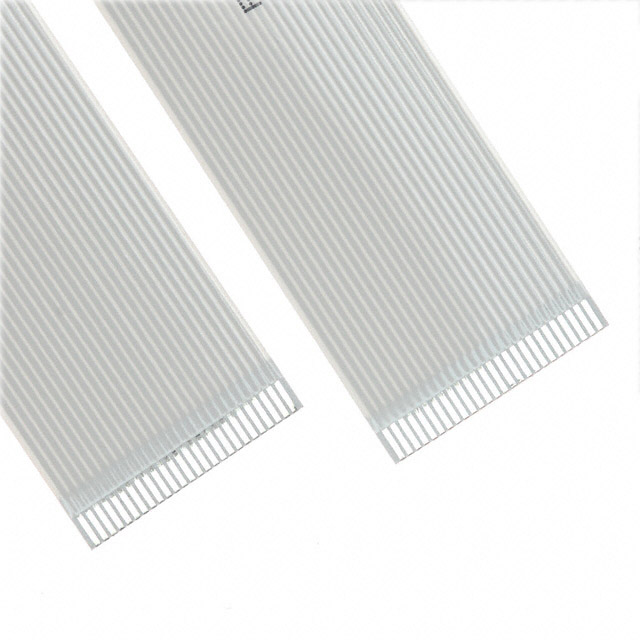

CABLE FFC/FPC 26POS 0.5MM 3"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 26POS 0.5MM 3"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position FFC, FPC Cable 0.020" (0.50mm) 3.000" (76.20mm)

Technical documentation and resources

Specification	050R26-76B	050R26 Series

Cable Type	FPC, FFC	FPC, FFC
Length	3 in	2 - 5 in
Length	76.2 mm	50.8 - 127 mm
Length	-	5.984 in
Length	-	152 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	26	26
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

Part	Termination Style	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length	Length	Number of Conductors	Cable Type	Length [x]	Length [x]
Parlex USA LLC 050R26-51B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	50.8 mm	2 in	26	FFC, FPC
Parlex USA LLC 050R26-152B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			26	FFC, FPC	5.984 in	152 mm
Parlex USA LLC 050R26-127B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	127 mm	5 in	26	FFC, FPC
Parlex USA LLC 050R26-102B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	101.6 mm	4 in	26	FFC, FPC
Parlex USA LLC 050R26-76B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	76.2 mm	3 in	26	FFC, FPC
