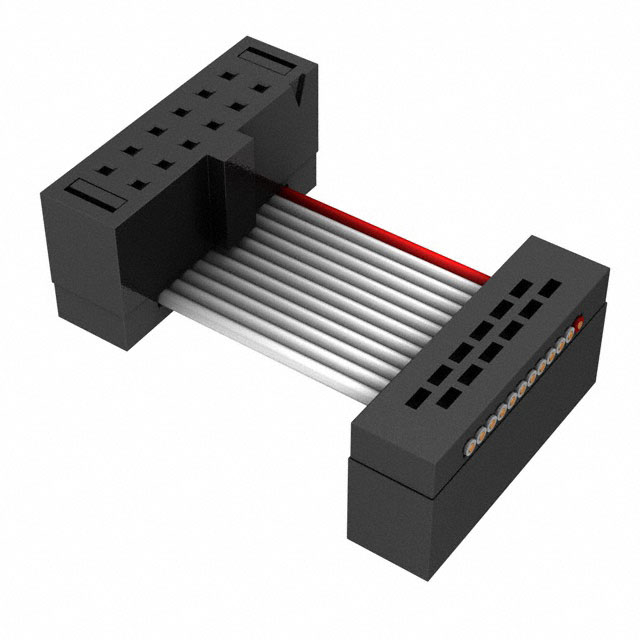

Specification	FFSD-06-D-13.00-01-N-R

Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Reversed, Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Polarizing Key, Reverse Wiring
Length	1.08 ft
Number of Positions	12
Number of Rows	2
Pitch - Cable	0.025 in
Pitch - Connector	0.05 in
Shielding	Unshielded

FFSD Series

...

Part	Color	Number of Rows	Pitch - Cable	Pitch - Connector	Cable Termination	Connector Type	Contact Finish Thickness	Number of Positions	Length	Shielding	Features	Contact Finish
Samtec Inc. FFSD-13-D-72.00-01-N	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Socket	10 Ąin	26	6 ft	Unshielded	Polarizing Key	Gold
Samtec Inc. FFSD-20-D-02.76-01-N-RN1	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Socket	10 Ąin	40	0.23 ft	Unshielded	Polarizing Key	Gold
Samtec Inc. FFSD-15-S-28.00-01-N	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Cable	10 Ąin	30	2.33 ft	Unshielded	Polarizing Key	Gold
Samtec Inc. FFSD-17-D-42.00-01-N	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Socket	10 Ąin	34	3.5 ft	Unshielded	Polarizing Key	Gold
Samtec Inc. FFSD-20-D-06.80-01-N	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Socket	10 Ąin	40	0.567 ft	Unshielded	Polarizing Key	Gold
Samtec Inc. FFSD-08-D-07.75-01-N	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Socket	10 Ąin	16	0.646 ft	Unshielded	Polarizing Key	Gold
Samtec Inc. FFSD-17-D-02.16-01-N	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Socket	10 Ąin	34	0.18 ft	Unshielded	Polarizing Key	Gold
Samtec Inc. FFSD-06-D-06.00-01-N	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Socket	10 Ąin	12	0.5 ft	Unshielded	Polarizing Key	Gold
Samtec Inc. FFSD-10-D-20.50-01-N-R	Gray Ribbon	2	0.025 in	0.05 in	IDC	Reversed Socket to Socket	10 Ąin	20	1.71 ft	Unshielded	Polarizing Key Reverse Wiring	Gold
Samtec Inc. FFSD-03-S-36.00-01-RW	Gray Ribbon	2	0.025 in	0.05 in	IDC	Socket to Cable	10 Ąin	6	3 ft	Unshielded	Reverse Wiring	Gold
