215325 Series

Mini-Fit Jr. Female-to-Mini-Fit Jr. Female Off-the-Shelf (OTS) Cable Assembly, Dual Row, 600.00mm Length, Gold (Au) Plating, 4 Circuits, Black

Part	Number of Positions	Pitch - Connector	Color	Number of Rows	Connector Type	Shielding	Cable Termination	Contact Finish	Length	Contact Finish Thickness
Molex 2153251043	4	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Tin	1.97 ft	35 µin
Molex 2153252061	6	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Gold	0.492 ft	30 µin
Molex 2153251082	8	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Tin	0.984 ft	35 µin
Molex 2153251021	2	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Tin	0.492 ft	35 µin
Molex 2153251102	10	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Tin	0.984 ft	35 µin
Molex 2153252021	2	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Gold	0.492 ft	30 µin

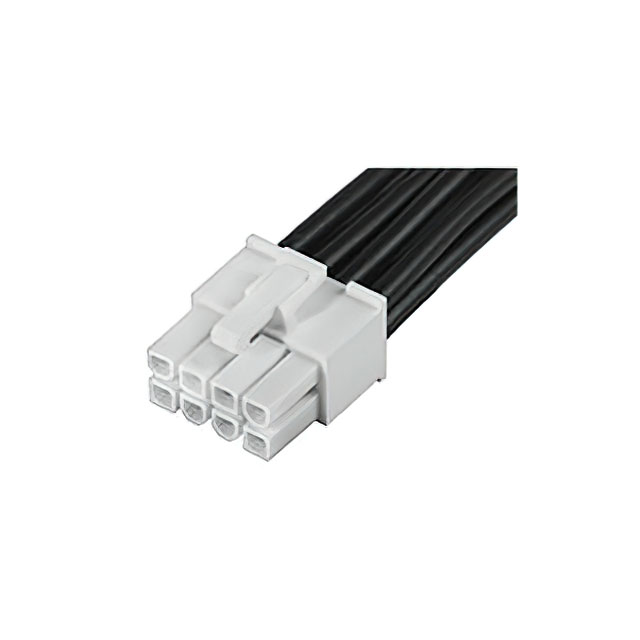

Molex 2153251083	8	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Tin	1.97 ft	35 µin
Molex 2153252023	2	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Gold	1.97 ft	30 µin
Molex 2153251081	8	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Tin	0.492 ft	35 µin
Molex 2153252043	4	0.165 in	Black Individual	2	Socket to Socket	Unshielded	Crimp	Gold	1.97 ft	30 µin
