Technical Specifications
Parameters and characteristics for this part
| Specification | 806-013-ME16-42SMTF |
|---|---|
| Applications | Aerospace |
| Backshell Material, Plating | Aluminum |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 42 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | F |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 42 |
| Shell Size - Insert (Minimum) | 16 S |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 1.8 kVAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 3661.36 | 30d+ |
CAD
3D models and CAD resources for this part
Description
General part information
806-013-ME16-42SMTF

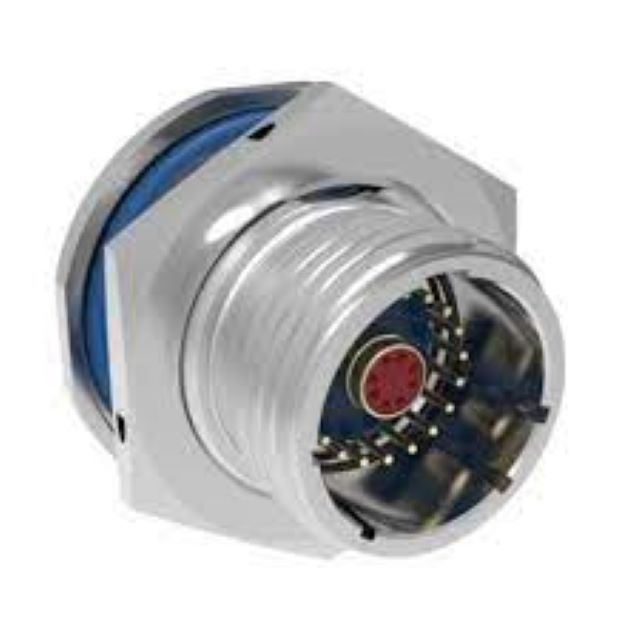

42 Position Circular Connector Plug, Female Sockets Crimp
