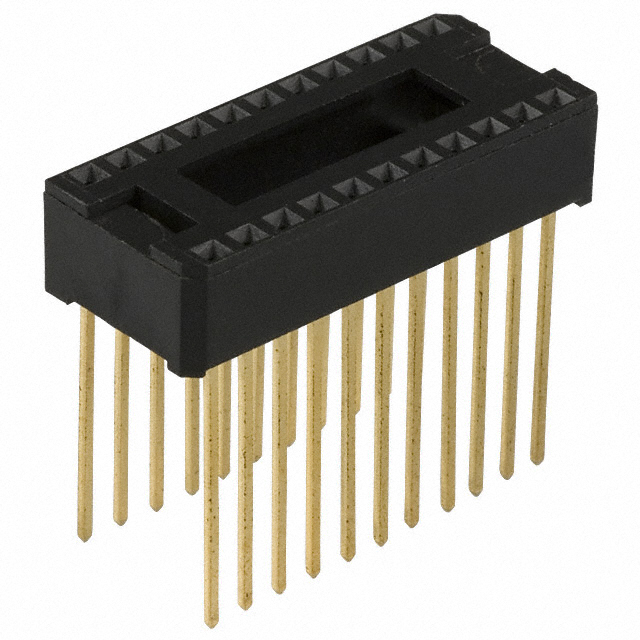

C9122-00
ObsoleteAries Electronics
CONN IC DIP SOCKET 22POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C9122-00
ObsoleteAries Electronics
CONN IC DIP SOCKET 22POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C9122-00 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Current Rating (Amps) | 1.5 A |
| Features | Closed Frame |
| Housing Material | Glass Filled, Polyamide (PA46), Nylon 4/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 22 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Wire Wrap |
| Type | 0.4 in |
| Type | 10.16 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C9122-00
22 (2 x 11) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Through Hole
