Specification	0434590043

Applications	Medical, Industrial, Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Lock, Blind Mating
Insulation Color	Natural
Insulation Height	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	24 pos
Number of Positions Loaded	20
Number of Rows	2
Pitch - Mating	0.165 in
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

043459 Series

Part	Contact Length - Post	Contact Shape	Insulation Height	Pitch - Mating	Shrouding	Style	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Type	Number of Rows	Connector Type	Insulation Material	Mounting Type	Row Spacing - Mating	Insulation Color	Features	Contact Material	Fastening Type	Material Flammability Rating	Number of Positions	Termination	Number of Positions Loaded	Contact Finish - Mating	Applications	Number of Positions Loaded	Voltage Rating	Voltage Rating (Type)	Current Rating	Current Rating
Molex 0434590009	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Board or Cable	100 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-2	18	Solder	All	Tin	General Purpose Industrial Medical Telecommunications
Molex 0434590003	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Board or Cable	100 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-2	4	Solder	All	Tin	General Purpose Industrial Medical Telecommunications
Molex 0434590027	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Board or Cable	30 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-0	24 pos	Solder		Gold	General Purpose Industrial Medical Telecommunications	22
Molex 0434590002	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Cable/Wire	100 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-0	4	Solder	All	Tin	General Purpose Industrial Medical Telecommunications
Molex 0434590033	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Board or Cable	30 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-0	14	Solder	All	Gold	General Purpose Industrial Medical Telecommunications
Molex 0434590008	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Board or Cable	30 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-0	10	Solder	All	Gold	General Purpose Industrial Medical Telecommunications
Molex 0434590051									Male Pin		Header		Through Hole			Blind Mating				12						600 V	DC	0 A	Varies by Wire Gauge
Molex 0434590016	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Board or Cable	100 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-0	14	Solder	All	Tin	General Purpose Industrial Medical Telecommunications

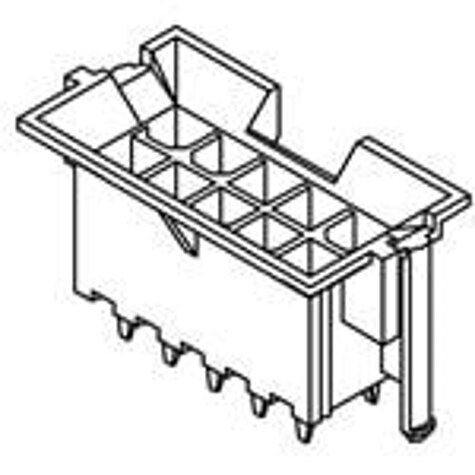

Molex 0434590005	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Board or Cable	100 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-2	10	Solder		Tin	General Purpose Industrial Medical Telecommunications	9
Molex 0434590001	0.138 in	Square	0.555 in	0.165 in	Shrouded - 4 Wall	Board Cable/Wire	100 µin	Tin	Male Pin	2	Header	Nylon 6/6 Polyamide (PA66)	Through Hole	0.165 in	Natural	Blind Mating Board Lock	Brass	Push-Pull	UL94 V-2	4	Solder	All	Tin	General Purpose Industrial Medical Telecommunications

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

0434590043 | Datasheet

Mini-Fit BMI Prod Spec
