Description
General part information

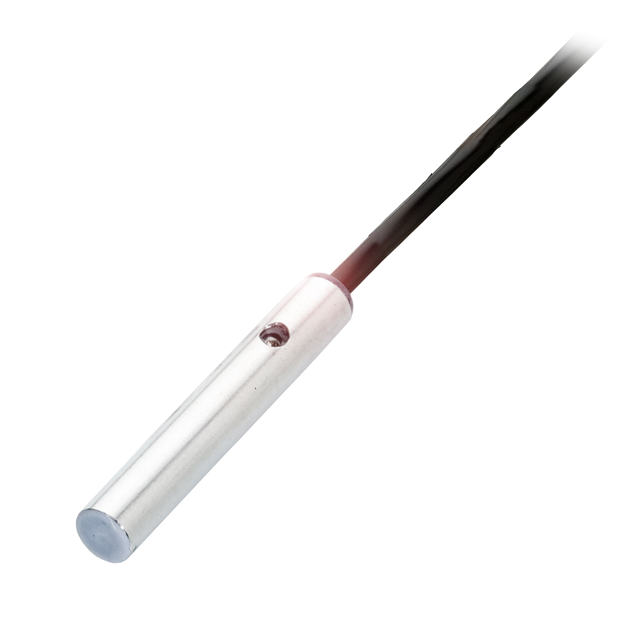

BCS001L
SENSOR PROX CAP 0.1-1.5MM MOD
Technical Specifications
Parameters and characteristics for this part
| Specification | BCS001L |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Module |
| Sensing Distance Maximum | 0.059 " |
| Sensing Distance Minimum | 0.004 " |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 11 VDC |
