Specification	0151681003

Cable Type	FPC, FFC
Length	228.6 mm
Length - Exposed Ends	0.197 in
Number of Conductors	29
Pitch	0.049 in
Termination Style	Backers on Both Sides, Top on Both Sides

015168 Series

...

Part	Pitch	Length	Termination Style	Length - Exposed Ends	Cable Type	Number of Conductors
Molex 0151680891	0.049 in	8 in	Backers on Both Sides Top on Both Sides	0.197 in	FFC FPC	19
Molex 0151680210	0.049 in	12 in			FFC FPC
Molex 0151680903	0.049 in	3 "	Backers on Both Sides Top on Both Sides	0.197 in	FFC FPC	21
Molex 0151680753	0.049 in	5 in	Backers on Both Sides Top on Both Sides	0.197 in	FFC FPC	7

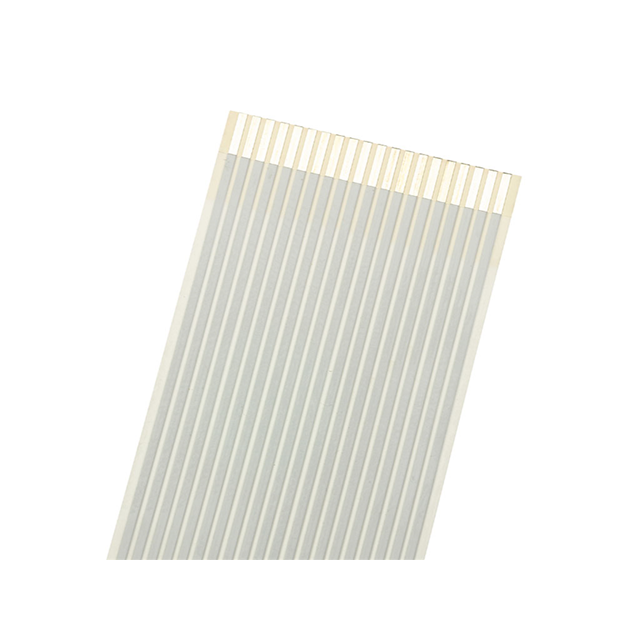

Molex 0151680181	0.049 in	8 in	Backers on Both Sides Top on Both Sides	0.197 in	FFC FPC	12
Molex 0151680271
Molex 0151680257	0.049 in	2 in	Backers on Both Sides Top on Both Sides	0.197 in	FFC FPC	20
Molex 0151680164
Molex 0151680869	0.049 in	8 in	Backers on Both Sides Top on Both Sides	0.197 in	FFC FPC	17
Molex 0151680876	0.049 in	1.18 in	Backers on Both Sides Bottom on Other Top on One Side	0.197 in	FFC FPC	19
