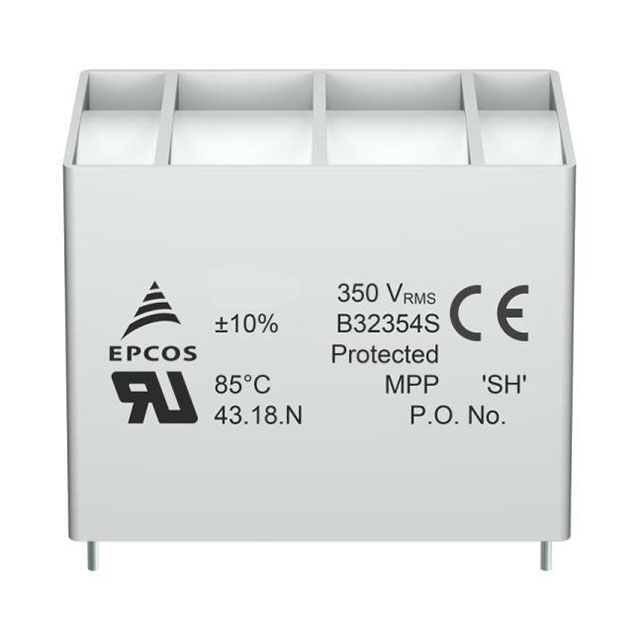

B32354S2106K010
ActiveEPCOS - TDK Electronics
CAP FILM 10UF 400VDC RDL 4 LEAD
B32354S2106K010
ActiveEPCOS - TDK Electronics
CAP FILM 10UF 400VDC RDL 4 LEAD
Description
General part information
B32354S2106K010
10 µF Film Capacitor 275V 400V Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | B32354S2106K010 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 10 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 16.5 mOhm |
| Height - Seated (Max) | 1.299 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Size / Dimension Length | 2.264 in |
| Size / Dimension Width | 1.004 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 275 VAC |
| Voltage Rating - DC | 400 V |
