A9CAA-1005F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFG10A/AF10/AFE10T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A9CAA-1005F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFG10A/AF10/AFE10T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9CAA-1005F | A9CAA Series |
|---|---|---|
| Length | - | 76.2 - 203.2 mm |
| Length | - | 6 - 8 in |
| Length [x] | 5 in | 3 - 5 in |
| Length [x] | 127 mm | 101.6 - 127 mm |
| Number of Positions | 10 | 2 - 22 |
| Number of Positions | - | 16 |
| Pitch [x] | 2.54 mm | 1.27 - 2.54 mm |
| Pitch [x] | 0.1 in | 0.05 - 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.45 | |
| 10 | $ 7.00 | |||
| 25 | $ 6.49 | |||
| 50 | $ 6.14 | |||
| 100 | $ 5.80 | |||
| 250 | $ 5.39 | |||
| 500 | $ 5.09 | |||
| 1000 | $ 4.82 | |||
A9CAA Series
FLEX CABLE - AFK12A/AE12/AFH12T
...
| Part | Length [x] | Length [x] | Pitch [x] | Pitch [x] | Number of Positions | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9CAA-1205E | 5 in | 127 mm | 0.05 in | 1.27 mm | 12 | |||
TE Connectivity AMP Connectors A9CAA-1403F | 3 in | 0.1 in | 2.54 mm | 14 | 76.2 mm | |||
TE Connectivity AMP Connectors A9CAA-1506F | 0.1 in | 2.54 mm | 15 | 152.4 mm | 6 in | |||
TE Connectivity AMP Connectors A9CAA-2008E | 0.05 in | 1.27 mm | 20 | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9CAA-0605F | 5 in | 127 mm | 0.1 in | 2.54 mm | 6 | |||
TE Connectivity AMP Connectors A9CAA-1204E | 4 " | 101.6 mm | 0.05 in | 1.27 mm | 12 | |||
TE Connectivity AMP Connectors A9CAA-0508E | 0.05 in | 1.27 mm | 203.2 mm | 8 in | ||||
TE Connectivity AMP Connectors A9CAA-0608F | 0.1 in | 2.54 mm | 6 | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9CAA-0403F | 3 in | 0.1 in | 2.54 mm | 4 | 76.2 mm | |||
TE Connectivity AMP Connectors A9CAA-1005F | 5 in | 127 mm | 0.1 in | 2.54 mm | 10 |
Description
General part information
A9CAA Series

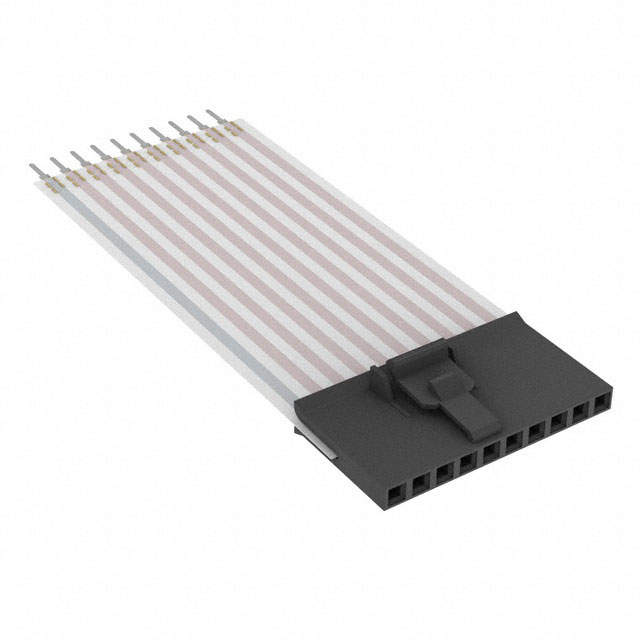

10 Position Flat Flex Cable Assembly Receptacle with Latch to Solder Tab 5.00" (127.00mm)
