TSL1315RA-102JR78-PF
ObsoleteTDK Corporation
FIXED IND 1MH 780MA 1 OHM TH
TSL1315RA-102JR78-PF
ObsoleteTDK Corporation
FIXED IND 1MH 780MA 1 OHM TH
Description
General part information
TSL1315RA-102JR78-PF

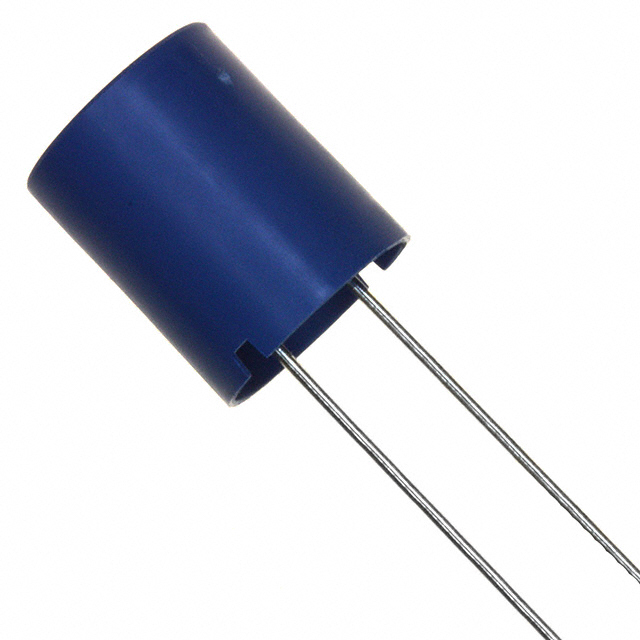

1 mH Unshielded Inductor 780 mA 1Ohm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | TSL1315RA-102JR78-PF |
|---|---|
| Current - Saturation (Isat) | 1.2 A |
| Current Rating | 780 mA |
| DC Resistance (DCR) (Max) | 1 Ohm |
| Frequency - Self Resonant | 1 MHz |
| Height - Seated (Max) | 0.669 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | Vertical Cylinder, Radial |
| Q | 30 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.551 in |
| Tolerance | 5 % |
