PV-670509-000
ActiveAmphenol Industrial Operations

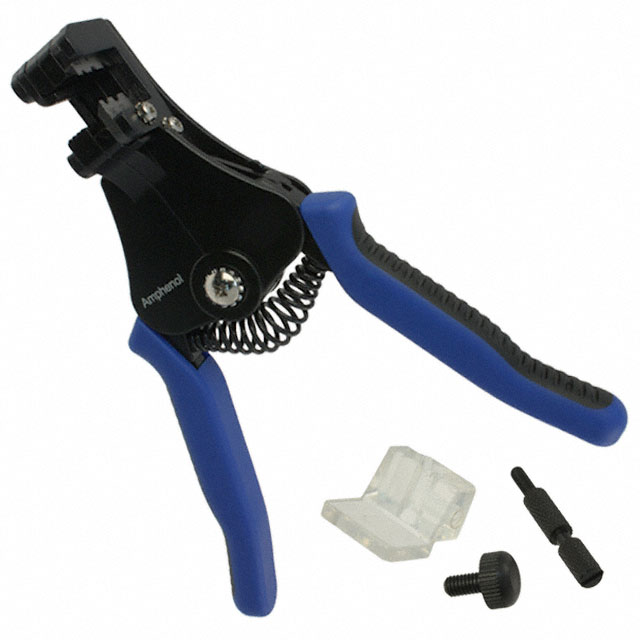

STRIP TOOL H4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PV-670509-000
ActiveAmphenol Industrial Operations
STRIP TOOL H4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PV-670509-000 | PV Series |
|---|---|---|
| Cable Type | Solar Cable | Solar Cable |
| Cable Type [Max] | 14 AWG | 14 AWG |
| Cable Type [Min] | 10 AWG | 10 AWG |
| For Use With/Related Products | - | Photovoltaic (Solar Panel) Contacts |
| Ratcheting | - | False |
| Tool Type | - | Die Set, Hand Crimper |
| Type | Single Level Stripper, Multiple Presets | Single Level Stripper, Multiple Presets |
| Wire Entry Location | - | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 67.34 | |
| 10 | $ 61.80 | |||
| 25 | $ 59.42 | |||
| 50 | $ 57.44 | |||
| 100 | $ 54.27 | |||
PV Series
CRIMP TOOL H4
| Part | Tool Type | Type | Cable Type [Min] | Cable Type [Max] | Cable Type | For Use With/Related Products | Ratcheting | Wire Entry Location |
|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PV-670508-003 | Die Set | |||||||
Amphenol Industrial Operations PV-670509-000 | Multiple Presets, Single Level Stripper | 10 AWG | 14 AWG | Solar Cable | ||||
Amphenol Industrial Operations PV-670508-000 | Hand Crimper | Photovoltaic (Solar Panel) Contacts | Side Entry | |||||
Amphenol Industrial Operations PV-670508-002 | Die Set |
Description
General part information
PV Series
Tool Single Level Stripper, Multiple Presets For Solar Cable, 10-14 AWG
Documents
Technical documentation and resources
