Connectors, Interconnects

881719-2

Active

TE Connectivity Raychem Cable Protection

CONN QC TAB 17-20AWG 0.110 CRIMP

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN QC TAB 17-20AWG 0.110 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	881719-2

Contact Finish	Electro-Tin
Contact Material	Brass
Gender	Male
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	2.69 mm, 0.106 "
Insulation Diameter [Min] [diameter]	1.4 mm, 0.055 "
Length - Overall [x]	0.866 "
Length - Overall [x]	22 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	12.4 mm
Tab Length	0.488 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17 AWG

Part	Contact Finish	Tab Width	Tab Width	Contact Material	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Gender	Length - Overall [x]	Length - Overall [x]	Termination	Tab Thickness	Tab Thickness	Mounting Type	Terminal Type	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Tab Length	Tab Length
TE Connectivity Raychem Cable Protection 881719-2	Electro-Tin	2.79 mm	0.11 "	Brass	0.055 " 1.4 mm	0.106 " 2.69 mm	Male	0.866 "	22 mm	Crimp	0.032 in	0.81 mm	Free Hanging (In-Line)	Standard	Non-Insulated	17 AWG	20 AWG	12.4 mm	0.488 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

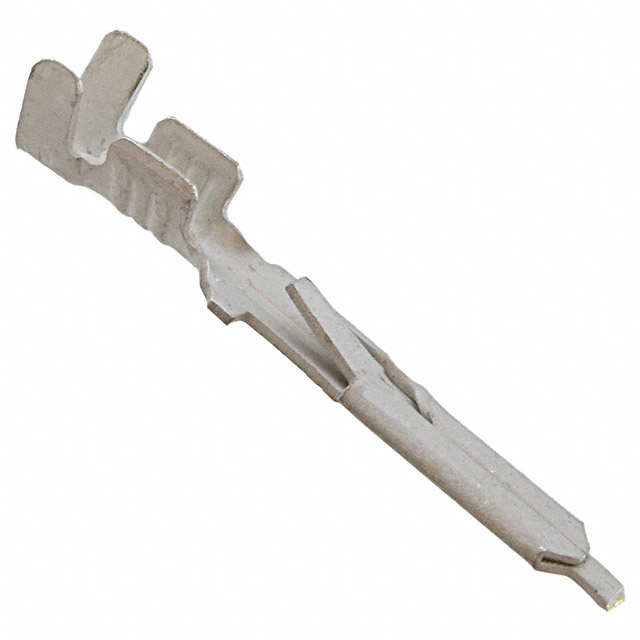

0.110" (2.79mm) Quick Connect Male 17-20 AWG Crimp Connector Non-Insulated
