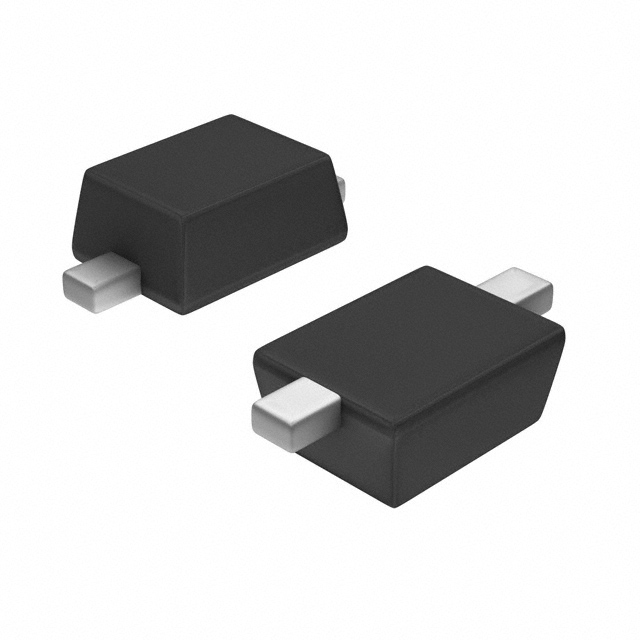

D3Z33BF-7
ActiveDiodes Inc
ZENER DIODE, 33V V(Z), 2.49%, 0.4W, SILICON, UNIDIRECTIONAL, GREEN, PLASTIC PACKAGE-2
Deep-Dive with AI
Search across all available documentation for this part.
D3Z33BF-7
ActiveDiodes Inc
ZENER DIODE, 33V V(Z), 2.49%, 0.4W, SILICON, UNIDIRECTIONAL, GREEN, PLASTIC PACKAGE-2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D3Z33BF-7 |
|---|---|
| Current - Reverse Leakage @ Vr | 50 nA |
| Impedance (Max) (Zzt) [Max] | 40 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | SOD-323F, SC-90 |
| Power - Max [Max] | 400 mW |
| Supplier Device Package | SOD-323F |
| Tolerance | 2 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 32.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.20 | |
| 10 | $ 0.13 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Digi-Reel® | 1 | $ 0.20 | ||
| 10 | $ 0.13 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.04 | |||
| Tape & Reel (TR) | 3000 | $ 0.02 | ||
| 6000 | $ 0.02 | |||
| 9000 | $ 0.02 | |||
Description
General part information
D3Z33BF Series
0.4W SURFACE MOUNT PRECISION ZENER DIODE
