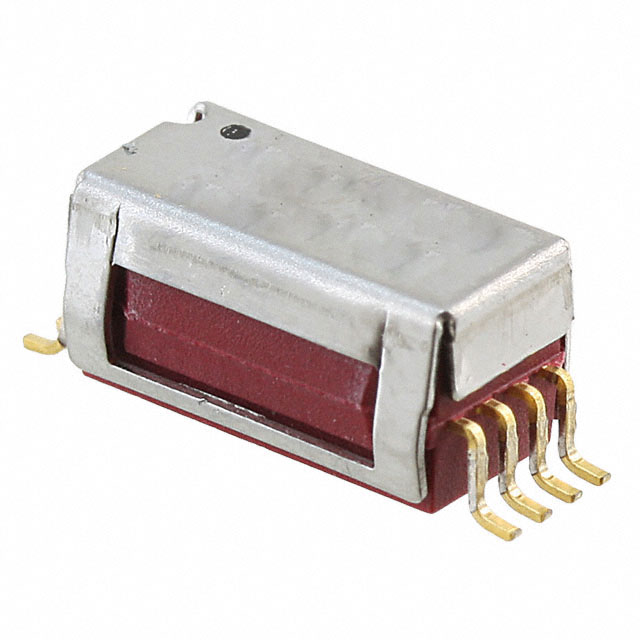

9852-05-00TR

Active

Coto Technology

RELAY COTO STANDARD CD REV. 00 BOM(B) MFG(NP1) 07/07 /TAPE-REEL

Search across all available documentation for this part.

Active

Coto Technology

RELAY COTO STANDARD CD REV. 00 BOM(B) MFG(NP1) 07/07 /TAPE-REEL

Technical Specifications

Parameters and characteristics commom to parts in this series

REED RELAY, SPDT, 5 VDC, 9852 SERIES, SURFACE MOUNT, 110 OHM, 100 MA

Part	Coil Type	Features	Must Release Voltage	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Contact Rating (Current)	Release Time	Mounting Type	Coil Resistance	Contact Form	Must Operate Voltage	Termination Style	Coil Voltage	Operate Time
Coto Technology 9852-05-20TR	Non Latching	Magnetic Shield	0.4 VDC	45.5 mA	85 °C	-20 C	30 VAC, 30 VDC	100 mA	1 ms	Surface Mount	110 Ohms	SPDT (1 Form C)	3.8 VDC	J Lead	5 VDC	1 ms
Coto Technology 9852-05-20	Non Latching	Magnetic Shield	0.4 VDC	45.5 mA	85 °C	-20 C	30 VAC, 30 VDC	100 mA	1 ms	Surface Mount	110 Ohms	SPDT (1 Form C)	3.8 VDC	J Lead	5 VDC	1 ms
Coto Technology 9852-05-00TR	Non Latching	Magnetic Shield	0.4 VDC	45.5 mA	85 °C	-20 C	30 VAC, 30 VDC	100 mA	1 ms	Surface Mount	110 Ohms	SPDT (1 Form C)	3.8 VDC	Gull Wing	5 VDC	1 ms
Coto Technology 9852-05-00	Non Latching	Magnetic Shield	0.4 VDC	45.5 mA	85 °C	-20 C	30 VAC, 30 VDC	100 mA	1 ms	Surface Mount	110 Ohms	SPDT (1 Form C)	3.8 VDC	Gull Wing	5 VDC	1 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY COTO STANDARD CD REV. 00 BOM(B) MFG(NP1) 07/07 /TAPE-REEL
