Description
General part information
FMC1619315-48

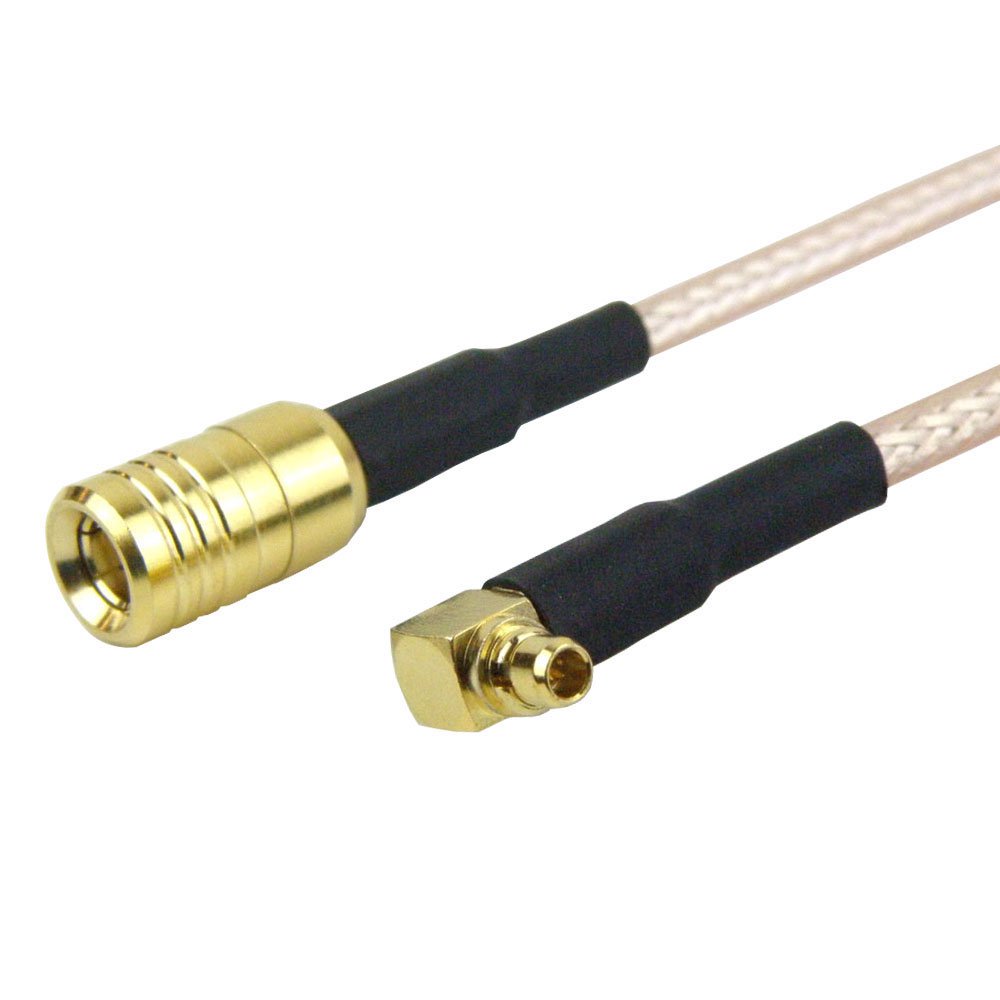

Cable Assembly Coaxial MMCX to SMB RG-316 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC1619315-48 |
|---|---|
| 1st Connector | SMB Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | SMB, MMCX |
