744C083154JP

Obsolete

CTS Resistor Products

RES ARRAY 4 RES 150K OHM 2012

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

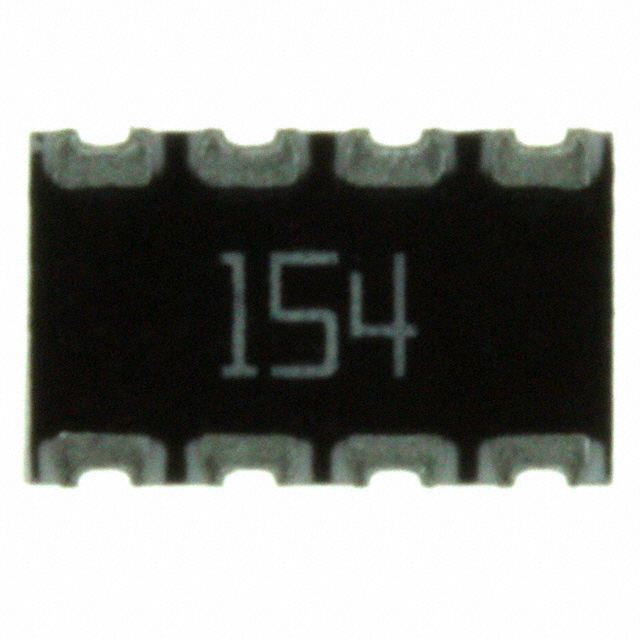

744C083154JP

Obsolete

CTS Resistor Products

RES ARRAY 4 RES 150K OHM 2012

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

744C083 Series

150k Ohm ±5% 125mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 2012, Concave, Long Side Terminals

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	744C083154JP	744C083 Series

	-	-
Circuit Type	Isolated	Isolated
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Mounting Type	Surface Mount	Surface Mount
Number of Pins	8	8
Number of Resistors	4	4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2012, Long Side Terminals, Concave	2012, Long Side Terminals, Concave
Power Per Element	125 mW	125 mW
Resistance (Ohms)	150k	4.7k, 39k, 10k, 27.4k, 33k, 1M, 15k, 22k, 220k, 150k, 47k
Resistance (Ohms)	-	1 - 27000 kOhms
Size / Dimension [x]	5.08 mm	5.08 mm
Size / Dimension [y]	0.126 in, 3.2 mm	0.126 - 3.2 in
Temperature Coefficient	200 ppm/°C	200 ppm/°C
Tolerance	5 %	1 - 5 %

744C083 Series

RES ARRAY 4 RES 1K OHM 2012

...

Part	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Tolerance	Resistance (Ohms)	Number of Pins	Number of Resistors	Package / Case	Power Per Element	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Circuit Type	Operating Temperature [Min]	Operating Temperature [Max]	Resistance (Ohms)
CTS Resistor Products 744C083102JTR	200 ppm/°C	0.126 in, 3.2 mm	5.08 mm	Surface Mount	5 %	1 kOhms	8	4	2012, Concave, Long Side Terminals	125 mW	0.7 mm	0.028 in	Isolated	-55 °C	125 °C
