NMNT10-12E
ActiveKnowles Syfer

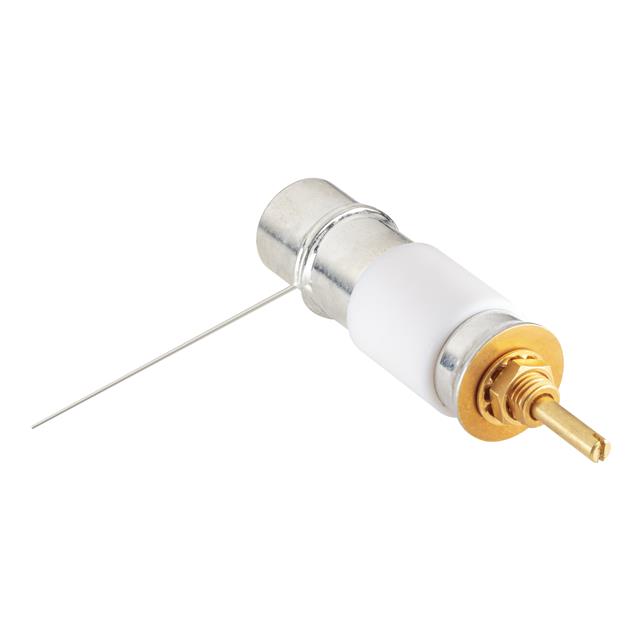

CAP TRIMMER 2-10PF 6000V PNL MNT
NMNT10-12E
ActiveKnowles Syfer
CAP TRIMMER 2-10PF 6000V PNL MNT
Description
General part information
NMNT10-12E
2 ~ 10pF Trimmer Capacitor 6000 V Top Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | NMNT10-12E |
|---|---|
| Adjustment Type | Top |
| Capacitance Range (Max) | 10 pF |
| Capacitance Range (Min) | 2 pF |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Non-Magnetic |
| Height - Seated (Max) | 1.845 in |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Size / Dimension Diameter | 0.55 in |
| Voltage - Rated | 6000 V |
