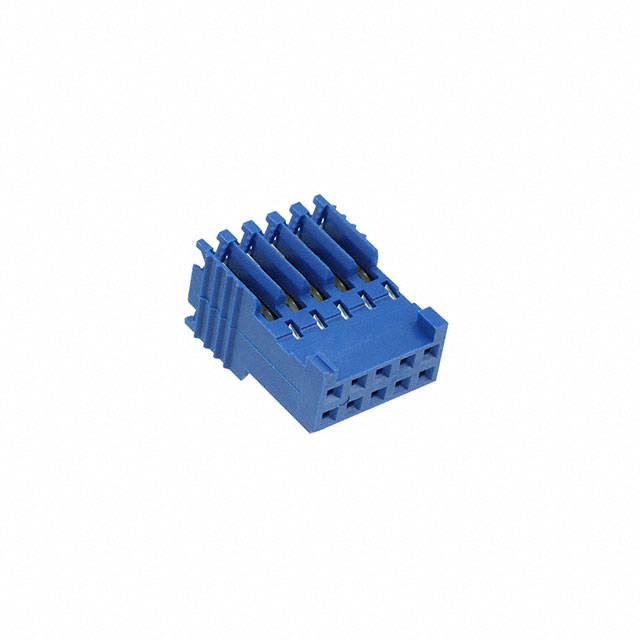

Specification	281792-5

Cable Termination	IDC
Color	Blue
Connector Type	Plug
Contact Finish	Tin
Contact Type	Female Socket
Fastening Type	Detent Lock
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch	0.1 in
Row Spacing	0.1 in
Wire Gauge (AWG) (Max)	28 AWG
Wire Gauge (AWG) (Min)	26 AWG
Wire Type	Discrete

AMPMODU HE 13/HE 14 Series

...

Part	Overall Contact Length	Contact Finish - Post	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Mating	Fastening Type	Contact Finish Thickness - Mating	Number of Positions	Material Flammability Rating	Insulation Material	Insulation Height	Pitch - Mating	Shrouding	Contact Type	Contact Finish - Mating	Contact Material	Number of Rows	Termination	Contact Shape	Insulation Color	Row Spacing - Mating	Mounting Type	Style	Connector Type	Contact Length - Post	Number of Positions Loaded	Applications	Cable Termination	Color	Wire Type	Pitch	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Contact Termination	Row Spacing	Wire Gauge	Features
TE Connectivity AMP Connectors 281740-3	0.492 in	Tin	100 °C	-40 °C	0.276 in	Friction Lock	16 µin	6	UL94 V-0	Thermoplastic	0.449 in	0.1 in	Shrouded - 2 Wall	Male Pin	Gold	Phosphor Bronze	2	Solder	Square	Blue	0.1 in	Through Hole	Board Cable/Wire	Header	0.114 in	All
TE Connectivity AMP Connectors 2-281739-0	0.492 in	Tin	100 °C	-40 °C	0.276 in	Friction Lock		40	UL94 V-0	Thermoplastic	0.449 in	0.1 in	Shrouded - 2 Wall	Male Pin	Tin	Phosphor Bronze	2	Solder	Square	Blue	0.1 in	Through Hole	Board Cable/Wire	Header	0.114 in	All	General Purpose
TE Connectivity AMP Connectors 281698-5		Tin	100 °C	-40 °C	0.276 in	Friction Lock		5	UL94 V-0	Thermoplastic	0.2 in	0.1 in	Shrouded - 2 Wall	Male Pin	Tin	Phosphor Bronze	1	Solder	Square	Blue		Right Angle Through Hole	Board Cable/Wire	Header	0.114 in	All	General Purpose
TE Connectivity AMP Connectors 281783-8						Detent Lock		8						Female Socket			1					Free Hanging (In-Line)		Plug				IDC	Blue	Discrete	0.1 in	26 AWG	24 AWG	Tin
TE Connectivity AMP Connectors 281786-2						Detent Lock		2						Female Socket			1					Free Hanging (In-Line)		Plug				IDC	Blue	Discrete	0.1 in	28 AWG	26 AWG	Tin
TE Connectivity AMP Connectors 281839-3			125 °C	-55 °C		Detent Lock		6		Glass Filled Polybutylene Terephthalate (PBT)				Female Socket			2					Free Hanging (In-Line)		Receptacle					Black		0.1 in				Crimp	0.1 in
TE Connectivity AMP Connectors 144270-4						Detent Lock		4						Female Socket			1					Free Hanging (In-Line) Right Angle		Plug				IDC		Discrete	0.1 in			Tin			24 AWG	Feed Through
TE Connectivity AMP Connectors 144271-4						Detent Lock		4						Female Socket			1					Free Hanging (In-Line) Right Angle		Plug				IDC		Discrete	0.1 in			Tin			26 AWG	Feed Through
TE Connectivity AMP Connectors 281708-4								4						Female Socket			1					Free Hanging (In-Line) Right Angle		Plug				IDC	Black	Discrete	0.1 in			Tin			24 AWG	Feed Through
TE Connectivity AMP Connectors 281696-2	0.492 in	Tin	100 °C	-40 °C	0.276 in	Friction Lock	16 µin	2	UL94 V-0	Thermoplastic	0.449 in	0.1 in	Shrouded - 2 Wall	Male Pin	Gold	Phosphor Bronze	1	Solder	Square	Blue		Through Hole	Board Cable/Wire	Header	0.114 in	All
