1412HW188
ActiveKanebridge
SELF-TAPPING SCREW - HIGH-LOW -
1412HW188
ActiveKanebridge
SELF-TAPPING SCREW - HIGH-LOW -
Description
General part information
1412HW188

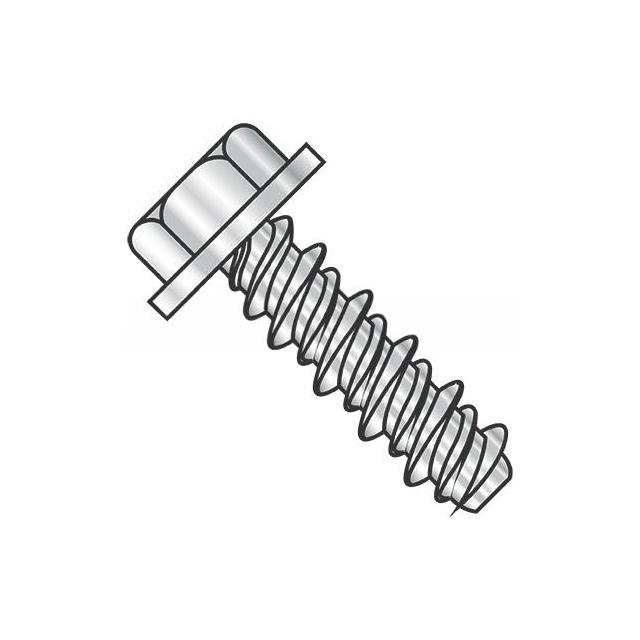

1/4"-15 Indented Hex Head Self-Tapping Screw External Hex Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1412HW188 |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Washer Included |
| Head Diameter | 0.371 in |
| Head Height | 0.181 in |
| Length - Below Head | 0.75 in |
| Length - Overall | 0.931 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Indented Hex Head |
| Thread Pitch (TPI) | 15 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
