25003 BK005

Active

ALPHA WIRE

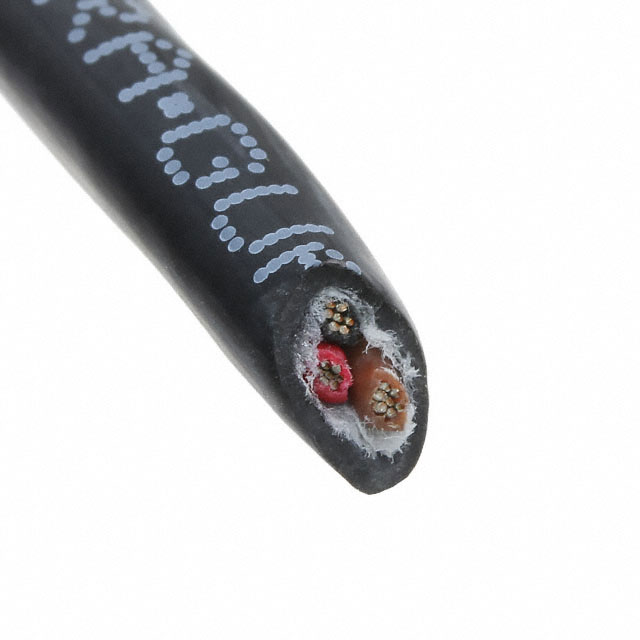

CABLE 3COND 22AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 22AWG BLACK 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25003 BK005	25003 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.176 in	0.176 in
Jacket (Insulation) Diameter [diameter]	4.47 mm	4.47 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Black, Slate, Yellow
Length	-	Enter Number of Feet in Order Quantity
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	3	3
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 3COND 22AWG BLACK FEET

Part	Operating Temperature [Min]	Operating Temperature [Max]	Spool Size	Spool Size	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Features	Jacket Color	Cable Type	Wire Gauge	Length	Ratings	Conductor Material	Length [x]	Length [x]	Length	Length
ALPHA WIRE 25003 BK199	-30 ░C	90 °C	1000 ft	304.8 m	Polyurethane (PU)	7	30 AWG	300 V	3	0.176 in	4.47 mm	Poly-Vinyl Chloride (PVC)	Biological Compatibility, Rip Cord	Black	Multi-Conductor	22 AWG	Enter Number of Feet in Order Quantity	ISO 10993, UL Style 20668	Copper, Tinned
ALPHA WIRE 25003 BK005	-30 ░C	90 °C			Polyurethane (PU)	7	30 AWG	300 V	3	0.176 in	4.47 mm	Poly-Vinyl Chloride (PVC)	Biological Compatibility, Rip Cord	Black	Multi-Conductor	22 AWG		ISO 10993, UL Style 20668	Copper, Tinned	30.5 m	100 ft
ALPHA WIRE 25003 SL199	-30 ░C	90 °C			Polyurethane (PU)	7	30 AWG	300 V	3	0.176 in	4.47 mm	Poly-Vinyl Chloride (PVC)	Biological Compatibility, Rip Cord	Slate	Multi-Conductor	22 AWG		ISO 10993, UL Style 20668	Copper, Tinned			1000 ft	304.8 m
ALPHA WIRE 25003 YL199	-30 ░C	90 °C			Polyurethane (PU)	7	30 AWG	300 V	3	0.176 in	4.47 mm	Poly-Vinyl Chloride (PVC)	Biological Compatibility, Rip Cord	Yellow	Multi-Conductor	22 AWG		ISO 10993, UL Style 20668	Copper, Tinned			1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Black 22 AWG 100.0' (30.5m)
