7-339-1PP-BA
ActiveTusonix a Subsidiary of CTS Electronic Components

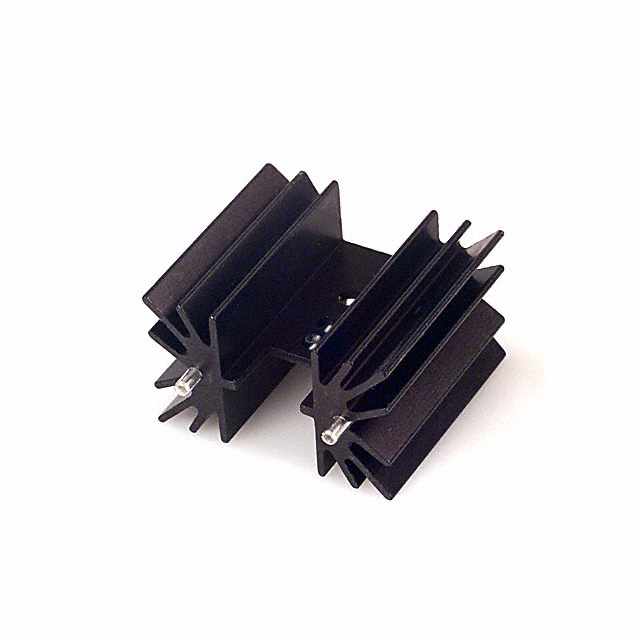

HEATSINK PWR W/PINS BLACK TO-220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-339-1PP-BA
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK PWR W/PINS BLACK TO-220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-339-1PP-BA |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 1 in |
| Fin Height | 25.4 mm |
| Length | 1.5 " |
| Length | 38.1 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 6 W |
| Shape | Rectangular, Fins |
| Type | Board Level, Vertical |
| Width [x] | 41.91 mm |
| Width [x] | 1.65 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.86 | |
| 10 | $ 1.81 | |||
| 25 | $ 1.76 | |||
| 50 | $ 1.72 | |||
Description
General part information
7-339-1 Series
Heat Sink TO-220 Aluminum 6.0W @ 60°C Board Level, Vertical
