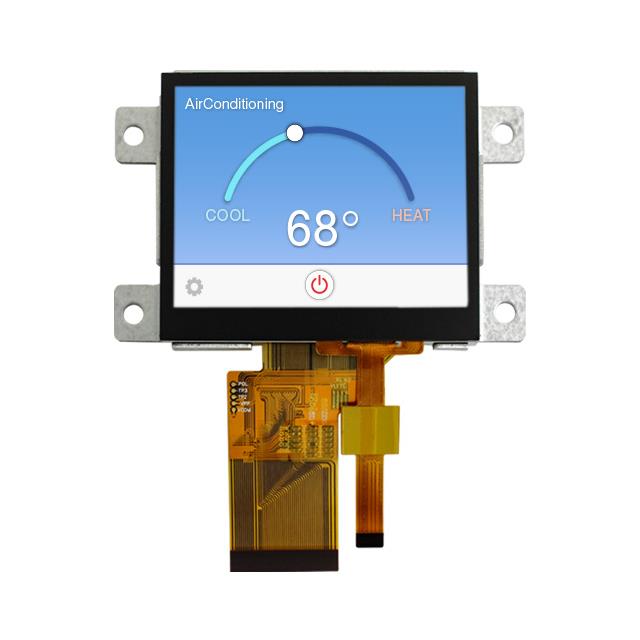

NHD-3.5-320240MB-ATXL-CTP

Obsolete

Newhaven Display Intl

3.5" MOUNTABLE STANDARD TFT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-3.5-320240MB-ATXL-CTP

Obsolete

Newhaven Display Intl

3.5" MOUNTABLE STANDARD TFT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-3.5 Series

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 3.5" (88.90mm) 320 x 240

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NHD-3.5-320240MB-ATXL-CTP	NHD-3.5 Series

	-	-
Accessory Type	-	Interface Board
Backlight	LED - White	Without Backlight, LED - White, LED
Contents	-	Cable(s), Board(s)
Controller Type	-	ST7272A, FT813, FT812, NV3035C, FT5426
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch	-	0.22 mm
Dot Pitch	-	0.22 mm
Dot Pixels	-	QVGA
Dot Pixels [x]	320 pixels	320 pixels
Dot Pixels [y]	240 pixels	240 pixels
Dot Size	-	0.07 mm
Dot Size	-	0.21 mm
Embedded	-	False
For Use With/Related Products	-	Newhaven Resistive Touch Panel
Function	-	LCD Controller
Graphics Color	Green, Red, Blue	Green, Red, Blue, White
Interface	Parallel	Parallel, SPI, 24-Bit (RGB), Parallel/Serial, I2C
Interface	24 Bit	24 Bit
Primary Attributes	-	For TFT Displays, TFT, COG Graphic, and Character LCD Displays
Secondary Attributes	-	PAL, NTSC
Supplied Contents	-	Cable(s), Board(s)
Touchscreen	Capacitive	Resistive, Capacitive
Type	-	Display
Utilized IC / Part	-	TW8817, SSD1963
Viewing Area	-	54.6 mm
Viewing Area [x]	70.08 mm	70.08 - 72.8 mm
Viewing Area [y]	52.56 mm	52.56 - 72.1 mm

NHD-3.5 Series

LCD DISPLAY TFT 3.5" 320X240

Part	Backlight	Display Type	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Interface	Interface	Controller Type	Graphics Color	Viewing Area [y]	Viewing Area [x]	Touchscreen	Display Mode	Type	Utilized IC / Part	Supplied Contents	Function	Contents	Secondary Attributes
Newhaven Display Intl NHD-3.5-320240MF-ESXN#	Without Backlight	TFT - Color
Newhaven Display Intl NHD-3.5-320240MF-ATXL#-3	Without Backlight	TFT - Color
Newhaven Display Intl NHD-3.5-320240JF-ASXP-T	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	Parallel	24 Bit	ST7272A	Blue, Green, Red	55.05 mm	71.82 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240MF-VIDEO BOARD V1.1														Display	TW8817	Board(s), Cable(s)	LCD Controller	Board(s), Cable(s)	NTSC, PAL
Newhaven Display Intl NHD-3.5-320240FT-CTXL-CTP	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	SPI		FT813	Blue, Green, Red	53.16 mm	70.68 mm	Capacitive	Transmissive
Newhaven Display Intl NHD-3.5-320240MB-ASXN-T	LED - White	TFT - Color		320 pixels	240 pixels	Parallel	24 Bit		Blue, Green, Red	52.56 mm	70.08 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240MB-ASXN-CTP	LED - White	TFT - Color		320 pixels	240 pixels	Parallel	24 Bit		Blue, Green, Red	52.56 mm	70.08 mm	Capacitive	Transmissive
Newhaven Display Intl NHD-3.5-320240FT-CTXL-T	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	SPI		FT812	Blue, Green, Red	55.05 mm	71.82 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240JF-ASXP	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	Parallel	24 Bit	ST7272A	Blue, Green, Red	52.56 mm	70.08 mm		Transmissive
Newhaven Display Intl NHD-3.5-320240MF-ATXL-1AM	Without Backlight	TFT - Color
