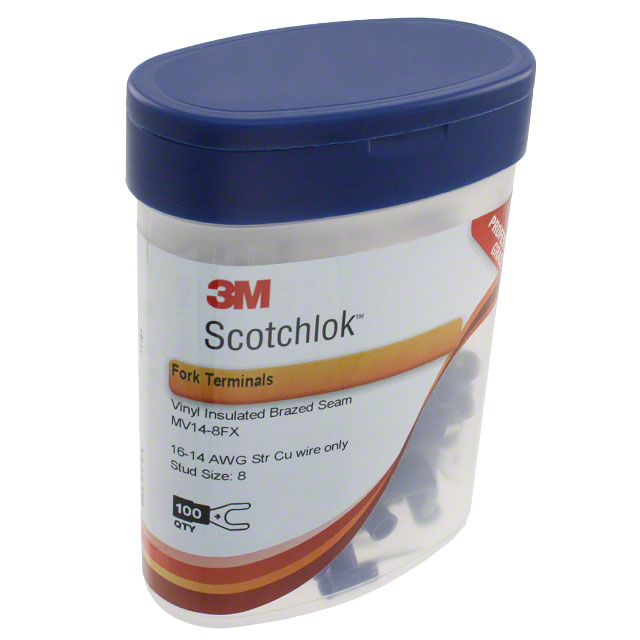

MV14-8FX-BOTTLE

Active

CONN SPADE TERM 14-16AWG #8 BLU

Deep-Dive with AI

Search across all available documentation for this part.

MV14-8FX-BOTTLE

Active

CONN SPADE TERM 14-16AWG #8 BLU

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.34

Description

General part information

MV14 Series

Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MV14-8FX-BOTTLE	MV14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated, Fully Insulated
Length - Overall	0.9 in	0.9 in
Length - Overall	22.86 mm	22.86 - 23.62 mm
Length - Overall	-	21.59 mm
Length - Overall	-	0.85 - 0.93 "
Length - Ring Center to Termination	0.29 in	0.29 in
Length - Ring Center to Termination	7.37 mm	7.37 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Termination [x]	0.45 in	0.45 in
Length - Termination [x]	11.43 mm	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	8 Stud	8 Stud
Stud/Tab Size	-	0.3125 - 10 Stud
Terminal Type	Standard	Standard, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	8.64 mm	7.87 - 8.64 mm
Width - Outer Edges	0.34 in	0.34 in
Width - Outer Edges	-	0.25 - 0.47 "
Width - Outer Edges	-	6.35 - 11.94 mm

MV14 Series

CONN SPADE TERM 14-16AWG #8 BLU

Part	Length - Ring Center to Termination	Length - Ring Center to Termination	Contact Finish	Features	Width - Outer Edges	Width - Outer Edges	Length - Termination [x]	Length - Termination [x]	Length - Overall	Length - Overall	Insulation	Termination	Mounting Type	Color	Contact Material	Terminal Type	Stud/Tab Size	Material - Insulation	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Number of Wire Entries
3M MV14-8FK	0.29 in	7.37 mm	Tin	Brazed Seam	8.64 mm	0.34 in	0.45 in	11.43 mm	0.9 in	22.86 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard	8 Stud	Vinyl
3M MV14-6FBK			Tin	Brazed Seam			0.45 in	11.43 mm			Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard		Vinyl	6 Stud	21.59 mm	0.85 "	0.25 in	6.35 mm
3M MV14-6FBX-BOTTLE			Tin	Brazed Seam			0.45 in	11.43 mm			Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard		Vinyl	6 Stud	21.59 mm	0.85 "	0.25 in	6.35 mm
3M MV14-6FB/SX-BOTTLE			Tin	Brazed Seam			0.45 in	11.43 mm			Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard		Vinyl	6 Stud	21.59 mm	0.85 "	0.25 in	6.35 mm	0.25 "	6.35 mm
3M MV14-516R/SX-BOTTLE			Tin	Brazed Seam							Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Circular		Vinyl	0.3125 Stud					0.47 in	11.94 mm	0.03 in	0.76 mm
3M MV14-10RK			Tin	Brazed Seam					0.9 in	22.86 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Circular		Vinyl	10 Stud					0.33 in	8.38 mm	0.03 in	0.76 mm
3M MV14-8R/LK			Tin	Brazed Seam	7.87 mm					23.62 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Circular	8 Stud	Vinyl			0.93 in			0.31 in		0.03 in	0.76 mm
3M MV14-10FX-BOTTLE	0.29 in	7.37 mm	Tin	Brazed Seam	8.64 mm	0.34 in	0.45 in	11.43 mm	0.9 in	22.86 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard		Vinyl	10 Stud
3M MV14BCK											Fully Insulated	Crimp		Blue		Butt Splice, Individual Openings, Inline												2
3M MV14-10R/LK			Tin	Brazed Seam	7.87 mm					23.62 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Circular		Vinyl	10 Stud		0.93 in			0.31 in		0.03 in	0.76 mm
