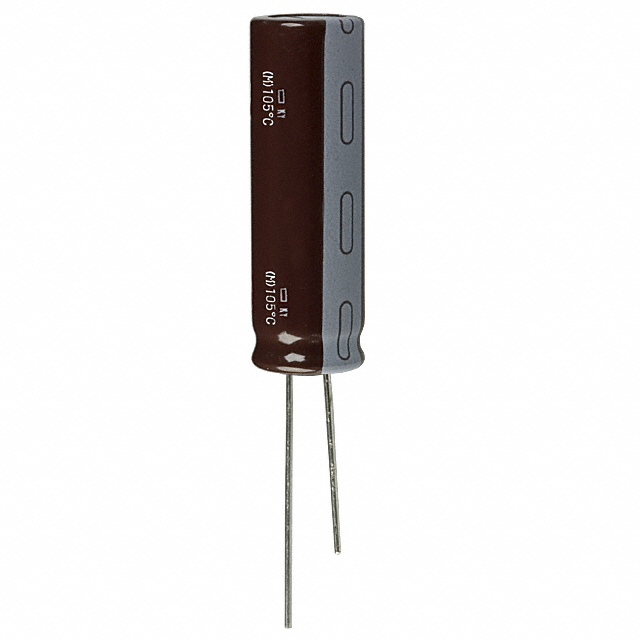

EKY-100ELL562MK40S

Active

Chemi-Con

CAP ALUM 5600UF 20% 10V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-100ELL562MK40S

Active

Chemi-Con

CAP ALUM 5600UF 20% 10V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.37
		10	$ 0.88
		50	$ 0.68
		100	$ 0.61
		500	$ 0.50
		1000	$ 0.47
		2500	$ 0.43
		5000	$ 0.41

Description

General part information

EKY-100E Series

5600 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-100ELL562MK40S	EKY-100E Series

Applications	General Purpose	General Purpose
Capacitance	5.6 mF	5.6 - 10000 µF
Height - Seated (Max)	-	0.492 - 0.846 in
Height - Seated (Max)	-	13 - 37 mm
Height - Seated (Max)	-	0.512 - 16.51 "
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max]	1.634 "	1.634 - 21.5 mm
Height - Seated (Max) [Max]	41.5 mm	41.5 mm
Impedance	17 mOhms	14 - 580 mOhms
Lead Spacing	5 mm	2 - 7.5 mm
Lead Spacing	0.197 in	0.079 - 0.295 in
Lifetime @ Temp.	8000 Hrs	4000 - 8000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	3.35 A	1.05 - 865 A
Ripple Current @ Low Frequency	2.8475 A	1.425 - 726 A
Size / Dimension [diameter]	0.492 in	0.197 - 0.709 in
Size / Dimension [diameter]	12.5 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	10 V	10 V

EKY-100E Series

CAP ALUM 2200UF 20% 10V RADIAL

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ Low Frequency	Capacitance	Impedance	Polarization	Tolerance	Lead Spacing	Lead Spacing	Package / Case	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-100ETD222MK20S	Through Hole	-40 °C	105 ░C	General Purpose	21.5 mm	0.846 in	8000 Hrs	0.492 in	12.5 mm	10 V	1.425 A	2200 µF	35 mOhms	Polar	20 %	5 mm	0.197 in	Radial, Can
Chemi-Con EKY-100ELL102MJ16S	Through Hole	-40 °C	105 ░C	General Purpose	17.5 mm	0.689 in	6000 Hrs	0.394 in	10 mm	10 V	726 mA	1000 µF	60 mOhms	Polar	20 %	5 mm	0.197 in	Radial, Can	1.21 A
Chemi-Con EKY-100ELL102MH20D	Through Hole	-40 °C	105 ░C	General Purpose	21.5 mm	0.846 in	6000 Hrs	0.315 "	8 mm	10 V	630 mA	1000 µF	69 mOhms	Polar	20 %	3.5 mm	0.138 in	Radial, Can	1.05 A
Chemi-Con EKY-100ELL471MHB5D	Through Hole	-40 °C	105 ░C	General Purpose			6000 Hrs	0.315 "	8 mm	10 V	320 mA	470 µF	130 mOhms	Polar	20 %	3.5 mm	0.138 in	Radial, Can	640 mA	13 mm	0.512 "
Chemi-Con EKY-100ELL562ML25S	Through Hole	-40 °C	105 ░C	General Purpose			8000 Hrs	0.63 in	16 mm	10 V	2.4905 A	5.6 mF	21 mOhms	Polar	20 %	7.5 mm	0.295 in	Radial, Can	2.93 A	26.5 mm	1.043 in
Chemi-Con EKY-100ETD102MJ16S	Through Hole	-40 °C	105 ░C	General Purpose	17.5 mm	0.689 in	6000 Hrs	0.394 in	10 mm	10 V	726 mA	1000 µF	60 mOhms	Polar	20 %	5 mm	0.197 in	Radial, Can	1.21 A
Chemi-Con EKY-100ELL272MM15S	Through Hole	-40 °C	105 ░C	General Purpose			8000 Hrs	0.709 "	18 mm	10 V	1.6575 A	2700 µF	43 mOhms	Polar	20 %	7.5 mm	0.295 in	Radial, Can	2.21 A	16.5 mm	16.51 mm
Chemi-Con EKY-100ETD102MH20D	Through Hole	-40 °C	105 ░C	General Purpose	21.5 mm	0.846 in	6000 Hrs	0.315 "	8 mm	10 V	630 mA	1000 µF	69 mOhms	Polar	20 %	3.5 mm	0.138 in	Radial, Can	1.05 A
Chemi-Con EKY-100ELL472MK35S	Through Hole	-40 °C	105 ░C	General Purpose			8000 Hrs	0.492 in	12.5 mm	10 V	2.448 A	4700 µF	20 mOhms	Polar	20 %	5 mm	0.197 in	Radial, Can	2.88 A	36.5 mm	1.437 in
Chemi-Con EKY-100ETD221MF11D	Through Hole	-40 °C	105 ░C	General Purpose	12.5 mm	0.492 in	4000 Hrs	0.248 in	6.3 mm	10 V	170 mA	220 µF	220 mOhms	Polar	20 %	2.5 mm	0.098 in	Radial, Can	340 mA
