25102 BK199
ActiveALPHA WIRE

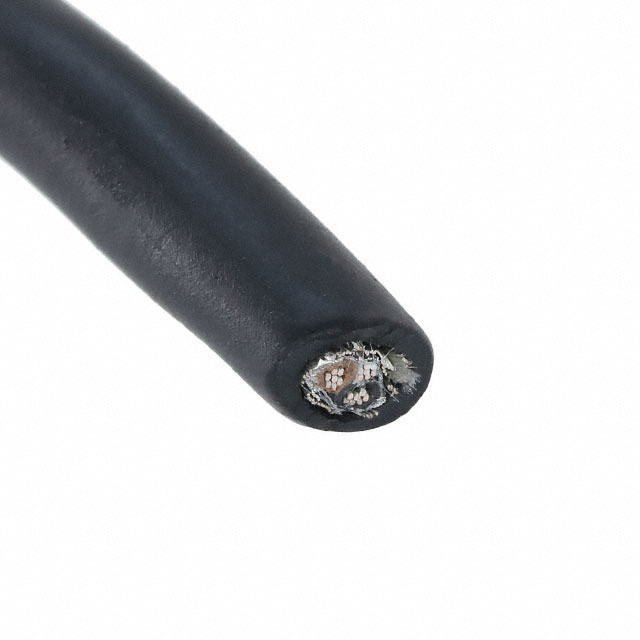

CABLE 2COND 22AWG BLK SHLD FEET
Deep-Dive with AI
Search across all available documentation for this part.
25102 BK199
ActiveALPHA WIRE
CABLE 2COND 22AWG BLK SHLD FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 25102 BK199 | 25102 Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 7 | 7 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Features | Rip Cord, Biological Compatibility, Drain Wire | Rip Cord, Biological Compatibility, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 4.98 mm | 4.98 mm |
| Jacket (Insulation) Diameter [diameter] | 0.196 in | 0.196 in |
| Jacket (Insulation) Material | Polyurethane (PU) | Polyurethane (PU) |
| Jacket Color | Black | Black, Slate |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Number of Conductors | 2 | 2 |
| Operating Temperature [Max] | 90 °C | 90 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 | UL Style 20668, ISO 10993 |
| Shield Coverage | 70 %, 100 % | 70 - 100 % |
| Shield Material | Copper, Tinned, Suprashield® | Copper, Tinned, Suprashield® |
| Shield Type | Foil, Braid | Foil, Braid |
| Spool Size | 1000 ft | 1000 ft |
| Spool Size | 304.8 m | 304.8 m |
| Voltage | 300 V | 300 V |
| Wire Gauge | 22 AWG | 22 AWG |
25102 Series
CABLE 2COND 22AWG BLK SHLD FEET
| Part | Conductor Insulation | Jacket Color | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Features | Length | Shield Material | Spool Size | Spool Size | Wire Gauge | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Shield Coverage | Ratings | Number of Conductors | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 25102 BK199 | Poly-Vinyl Chloride (PVC) | Black | Multi-Conductor | -30 ░C | 90 °C | 4.98 mm | 0.196 in | 300 V | Biological Compatibility, Drain Wire, Rip Cord | Enter Number of Feet in Order Quantity | Copper, Tinned, Suprashield® | 1000 ft | 304.8 m | 22 AWG | Braid, Foil | 7 | 30 AWG | Polyurethane (PU) | 70 %, 100 % | ISO 10993, UL Style 20668 | 2 | Copper, Tinned | ||
ALPHA WIRE 25102 SL199 | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | -30 ░C | 90 °C | 4.98 mm | 0.196 in | 300 V | Biological Compatibility, Drain Wire, Rip Cord | Copper, Tinned, Suprashield® | 22 AWG | Braid, Foil | 7 | 30 AWG | Polyurethane (PU) | 70 %, 100 % | ISO 10993, UL Style 20668 | 2 | Copper, Tinned | 1000 ft | 304.8 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 8.48 | |
| 3 | $ 7.81 | |||
| 5 | $ 7.53 | |||
| 7 | $ 7.38 | |||
| 10 | $ 7.18 | |||
| 25 | $ 6.75 | |||
| 50 | $ 6.40 | |||
| 100 | $ 6.12 | |||
Description
General part information
25102 Series
2 Conductor Multi-Conductor Cable Black 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
