102107-2
ActiveTE Connectivity AMP Connectors

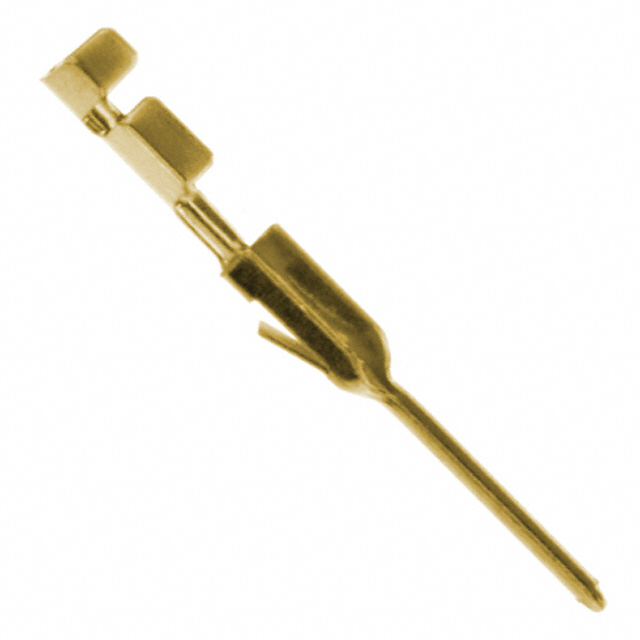

CONN PIN 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102107-2
ActiveTE Connectivity AMP Connectors
CONN PIN 22-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102107-2 | 102107 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Tin |
| Contact Finish Thickness | 0.76 Ám | 0.38 - 2.54 µm |
| Contact Finish Thickness | 30 Áin | 15 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.67 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.65 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.41 | |||
| 3000 | $ 0.38 | |||
102107 Series
CONN PIN 22-26AWG CRIMP GOLD
| Part | Contact Termination | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102107-1 | Crimp | Pin | 22 AWG | 26 AWG | 15 µin | 0.38 µm | Gold |
TE Connectivity AMP Connectors 5-102107-3 | Crimp | Pin | 22 AWG | 26 AWG | 100 µin | 2.54 µm | Tin |
TE Connectivity AMP Connectors 102107-2 | Crimp | Pin | 22 AWG | 26 AWG | 30 Áin | 0.76 Ám | Gold |
Description
General part information
102107 Series
Pin Contact Gold 22-26 AWG Crimp
