Q-0102U0001108i

Active

Amphenol Custom Cable

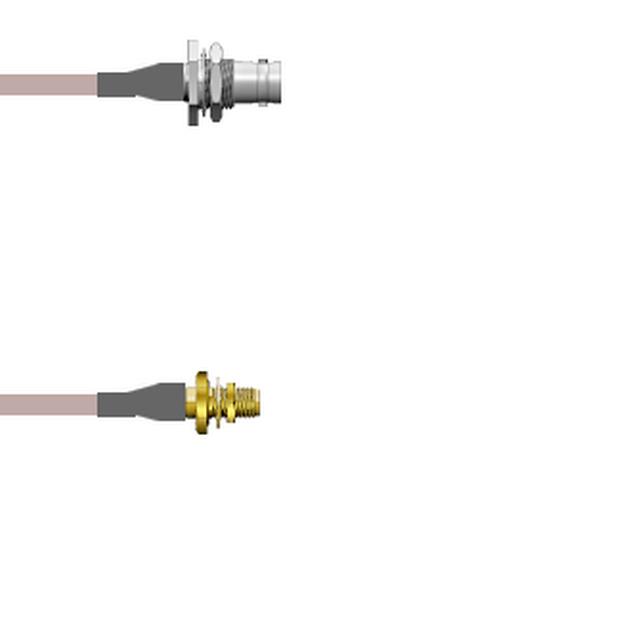

CBL ASSY BNC-SMA JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0102U0001108i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0102U0001108i	Q-0102U0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	SMA Jack	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	2.7 m	1 - 1200 m
Length	9 ft	3.3 - 9.8 ft
Length	108 in	5 - 118.1 in
Length	-	9.843 "
Length	-	250 - 457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to SMA	BNC to SMA

Q-0102U0 Series

CBL ASSY BNC-SMA JACK-JACK 6.6'

Part	Style	Overall Impedance	1st Connector Mounting Type	Color	Cable Type	2nd Contact Gender	1st Contact Gender	2nd Connector	Features	1st Connector Mounting Feature	1st Connector	Length	Length	Length	2nd Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Feature	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0102U0001002M	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack	6.6 ft	78.7 in	2 m	Panel Mount	4 GHz	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001.25M	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack				Panel Mount	4 GHz	Bulkhead - Front Side Nut	9.843 "	250 mm
Amphenol Custom Cable Q-0102U0001060i	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack	5 ft	5 '	1.5 m	Panel Mount	4 GHz	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001048i	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack	4 ft	48 in	1200 mm	Panel Mount	4 GHz	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001084i	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack	7 ft	84 in	2.1 m	Panel Mount	4 GHz	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001018i	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack				Panel Mount	4 GHz	Bulkhead - Front Side Nut		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0102U00012.5M	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack	8.2 '	98.4 in	2.5 m	Panel Mount	4 GHz	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001006i	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack		6 in	152.4 mm	Panel Mount	4 GHz	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U00010.5M	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack		19.69 "	50 cm	Panel Mount	4 GHz	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0102U0001003M	BNC to SMA	50 Ohms	Panel Mount	Copper	RG-178	Female	Female	SMA Jack	Shielded	Bulkhead - Front Side Nut	BNC Jack	9.8 '	118.1 in	3 m	Panel Mount	4 GHz	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 100.28
		25	$ 98.31
		50	$ 96.34
		100	$ 94.37
		250	$ 92.40

Description

General part information

Q-0102U0 Series

Cable Assembly Coaxial BNC to SMA RG-178 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
