000-28000

Active

AMPHENOL RF

CONN MHV PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN MHV PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-28000	000-28 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Silver	Silver
Connector Style	MHV	MHV
Connector Type	Male Pin, Plug	Receptacle, Female Socket, Male Pin, Plug
Contact Termination	Solder	Solder Tab, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Impedance	-	Non-Constant
Includes	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp
Ingress Protection	Weatherproof	IP67 - Dust Tight, Waterproof, Weatherproof
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Clamp	Solder, Clamp

CONN MHV RCPT STR SOLDER

Part	Body Finish	Ingress Protection	Shield Termination	Mating Cycles	Body Material	Impedance	Contact Termination	Housing Color	Mounting Feature	Dielectric Material	Number of Ports	Center Contact Material	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Fastening Type	Connector Type	Mounting Type	Cable Group	Impedance	Frequency - Max [Max]	Includes
AMPHENOL RF 000-28400	Nickel	IP67 - Dust Tight, Waterproof	Solder	500	Brass	Non-Constant	Solder Tab	Silver	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	1	Beryllium Copper	MHV	-65 ░C	165 °C	Silver	Bayonet Lock	Female Socket, Receptacle
AMPHENOL RF 000-28000	Nickel	Weatherproof	Clamp	500	Brass		Solder	Silver		Polytetrafluoroethylene (PTFE)	1	Brass	MHV	-65 ░C	165 °C	Silver	Bayonet Lock	Male Pin, Plug	Free Hanging (In-Line)	140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59	50 Ohms	4 GHz	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

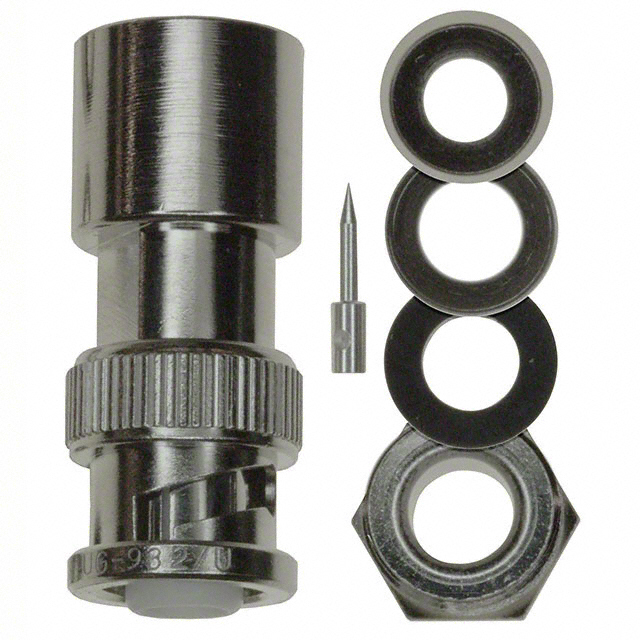

MHV Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
